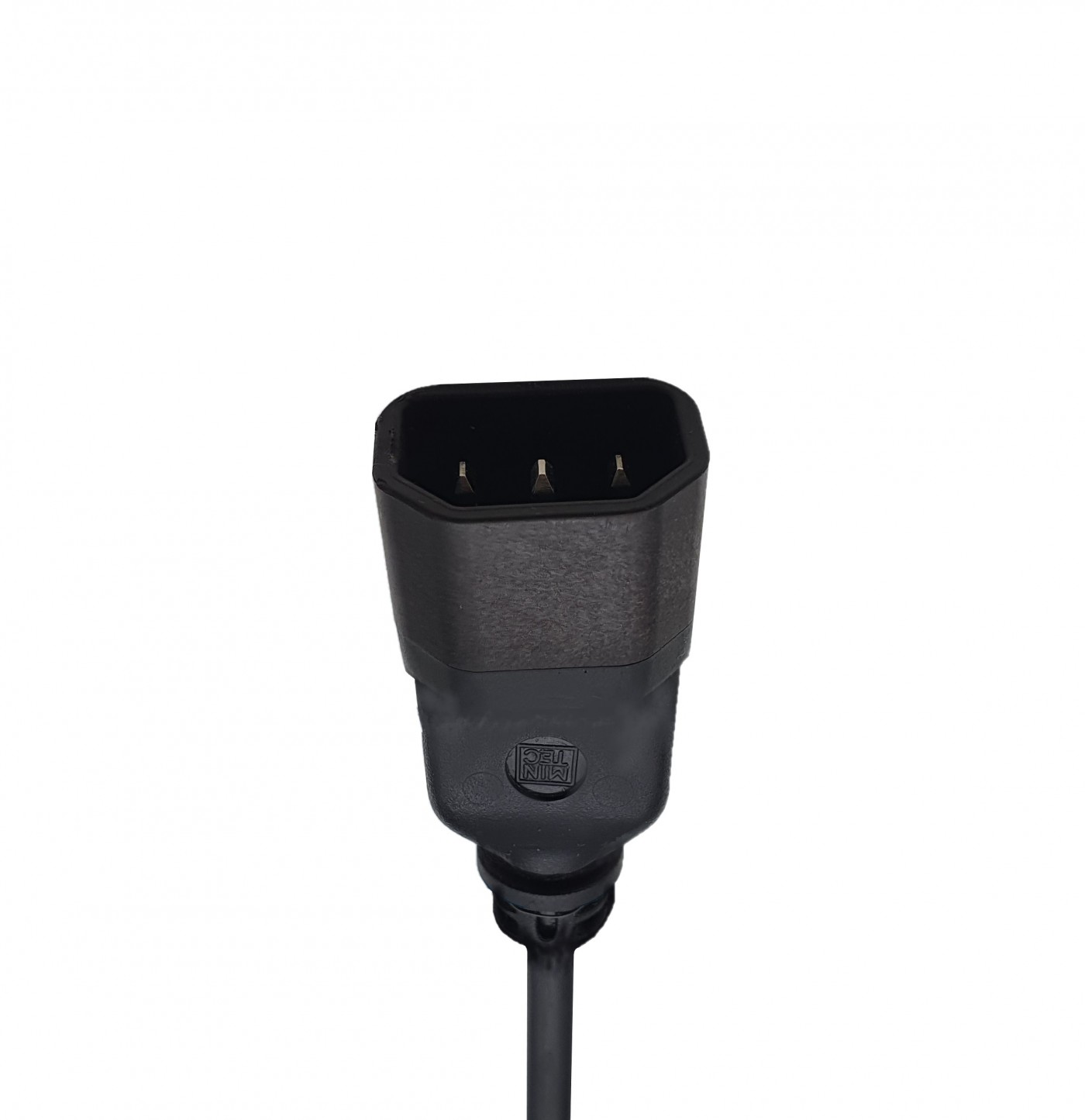

QP015 - Male connector 3 poles 15A straight
North American "UL approved" cordsets
QP015 - Male connector 3 poles 15A straight
North American "UL approved" cordsets
Cordset data:
According approvals
UL 817 (IEC 60320 C14)
Rating voltage
125V
Rating current
15A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
SJT-14AWG
SJT-16AWG
SJT-18AWG
SJTW 14AWG
SJTW 16AWG
SJTW 18AWG
SVT 18AWG
Approvals:
