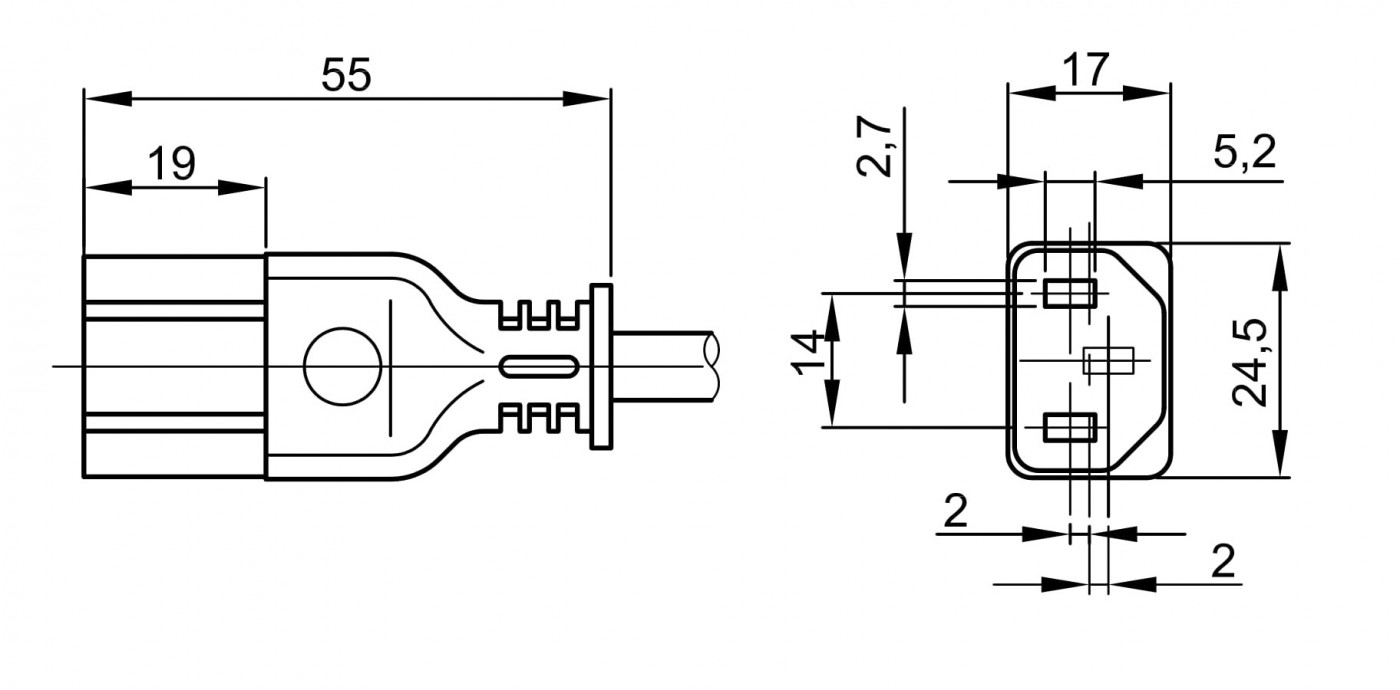

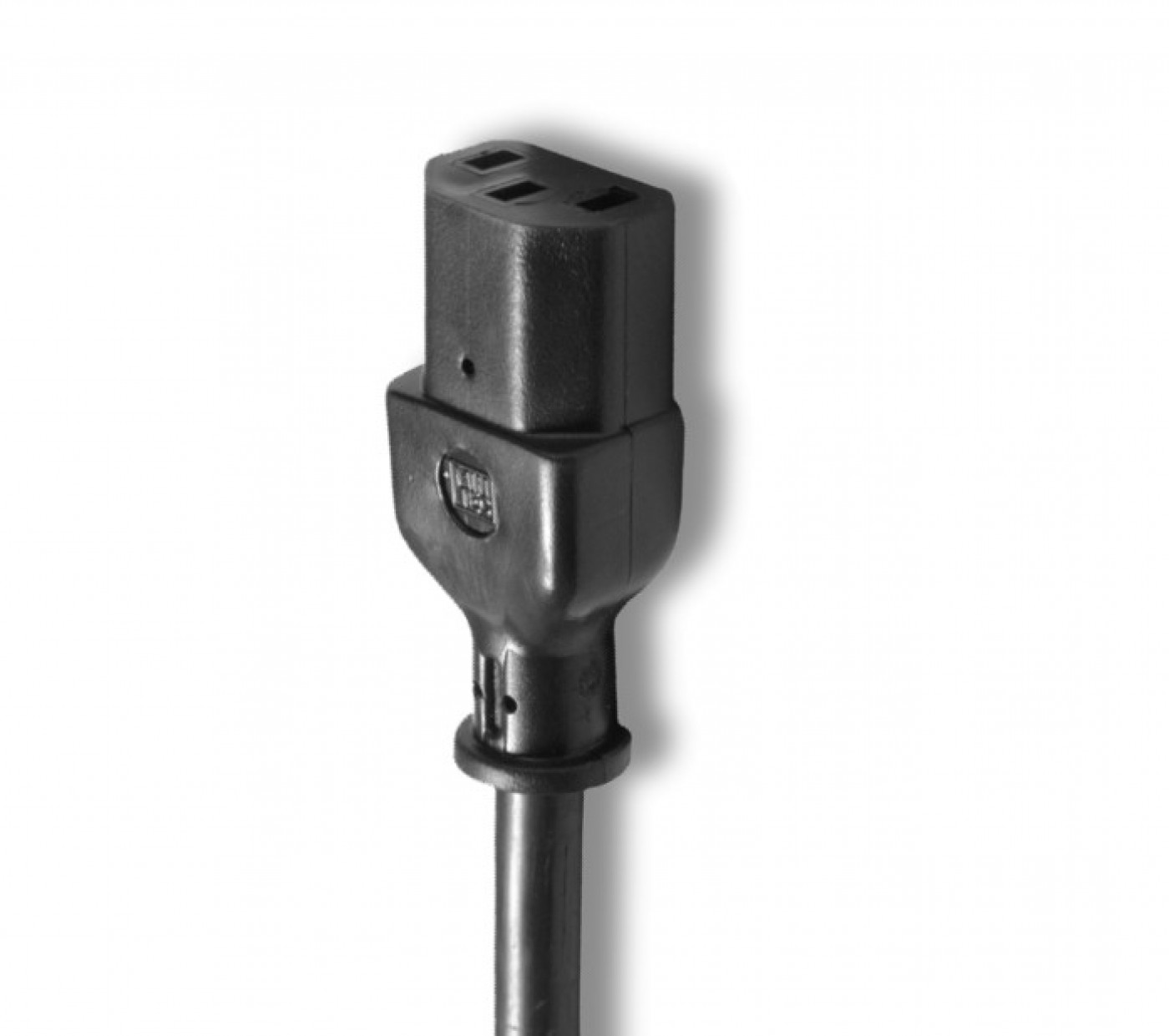

PA99 - Female connector 3 poles 10A straight
North American "UL approved" cordsets

PA99 - Female connector 3 poles 10A straight

North American "UL approved" cordsets
Cordset data:
According approvals
UL 817 (C13)
Rating voltage
125-250V
Rating current
7-10-13-15A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
SJT-14AWG
SJT-16AWG
SJT-18AWG
SJTO 14AWG
SJTOO-A 16AWG
SJTOO-A 18AWG
SJTOOW-A 14AWG
SJTOOW-A 16AWG
SJTOOW-A 18AWG
SJTOW-A 14AWG
SJTOW-A 16AWG
SJTOW-A 18AWG
SJTW 14AWG
SJTW 16AWG
SJTW 18AWG
SVT 16AWG
SVT 18AWG
SVTO 16AWG
SVTO 18AWG
SVTOO 16AWG
SVTOO 18AWG
Approvals:
