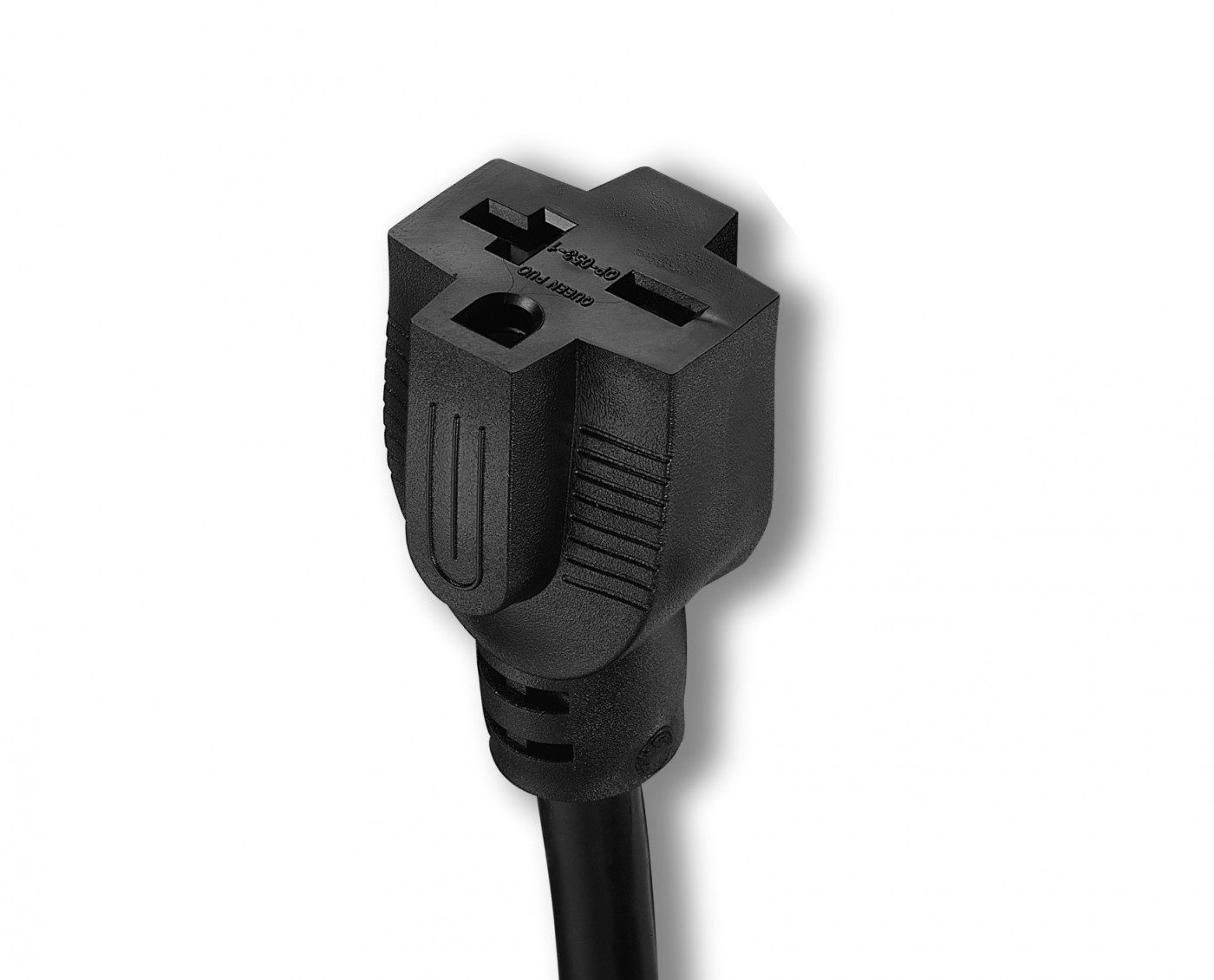

QP053 - North amercan mobile socket 3 poles 20A straight
North American cordsets

QP053 - North amercan mobile socket 3 poles 20A straight

North American cordsets
Cordset data:
According approvals
UL 817 (Nema 6-20R)
Rating voltage
250V
Rating current
20A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
SJ-12AWG
SJ-14AWG
SJ-16AWG
SJ-18AWG
SJO-12AWG
SJO-14AWG
SJO-16AWG
SJO-18AWG
SJT-12AWG
SJT-14AWG
SJT-16AWG
SJT-18AWG
SJTOW-12AWG
SJTOW-A 14AWG
SJTOW-A 16AWG
SJTOW-A 18AWG
SJTW-12AWG
SJTW-14AWG
SPT-2 16AWG
SVT 16AWG
Approvals:
