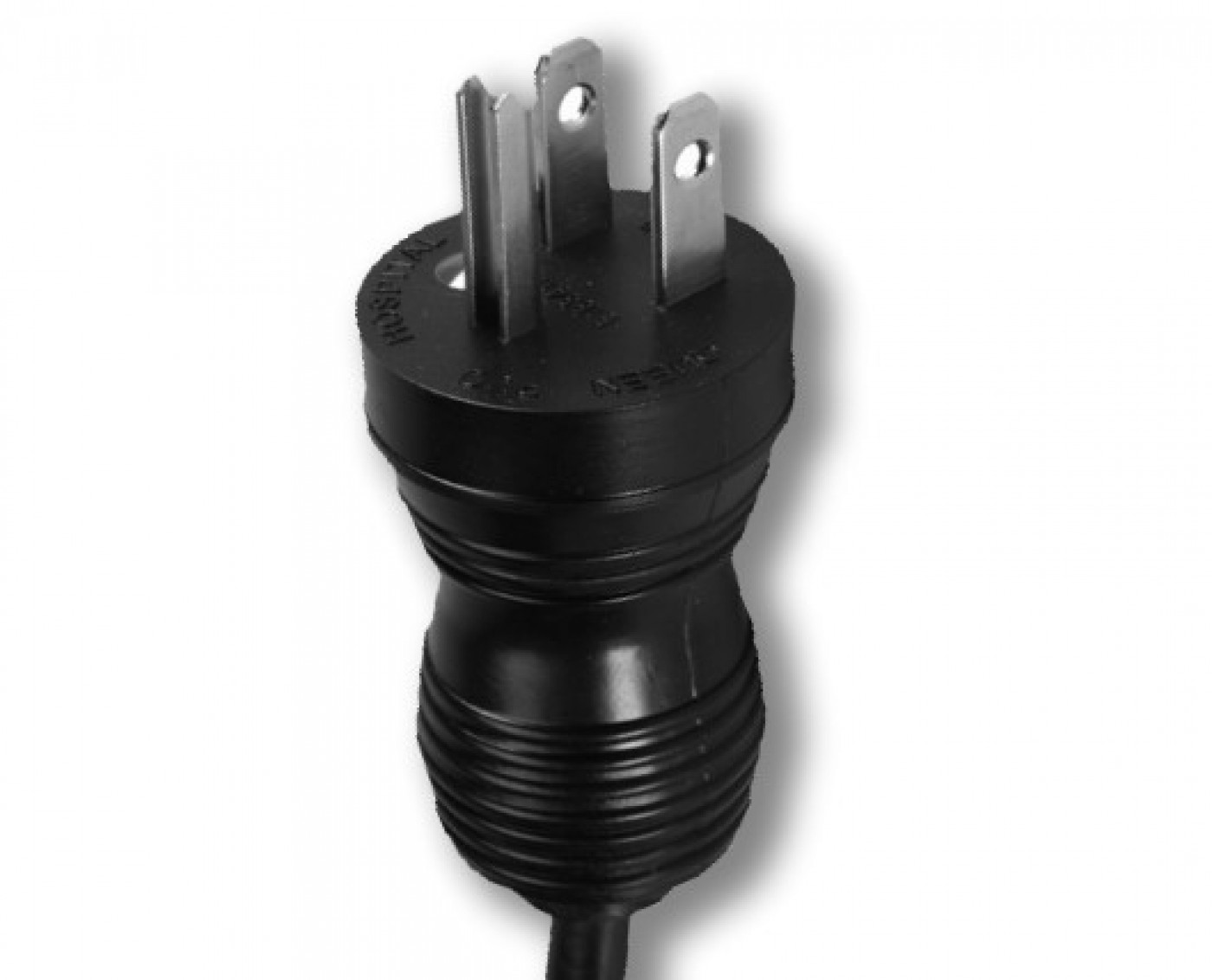

QP049 - North American plug 3 poles 10-13-15A straight
North American cordsets
QP049 - North American plug 3 poles 10-13-15A straight
North American cordsets
Cordset data:
According approvals
UL 817 (Nema 5-15P)
Rating voltage
125V
Rating current
15A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
SJT-14AWG
SJT-16AWG
SJT-18AWG
SJT-AWG14 shielded
SJT-AWG16 shielded
SJT-AWG18 shielded
SJTW 14AWG
SJTW 16AWG
SJTW 18AWG
SVT 18AWG
SVT-AWG18 shielded
Approvals:
