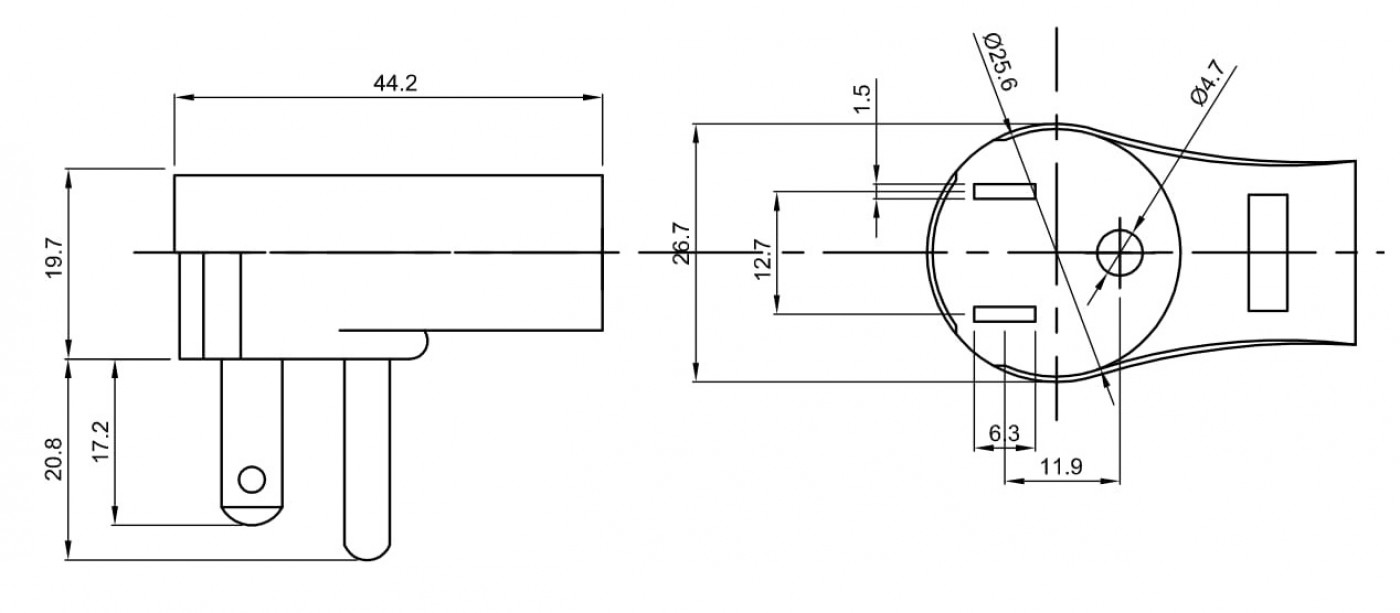

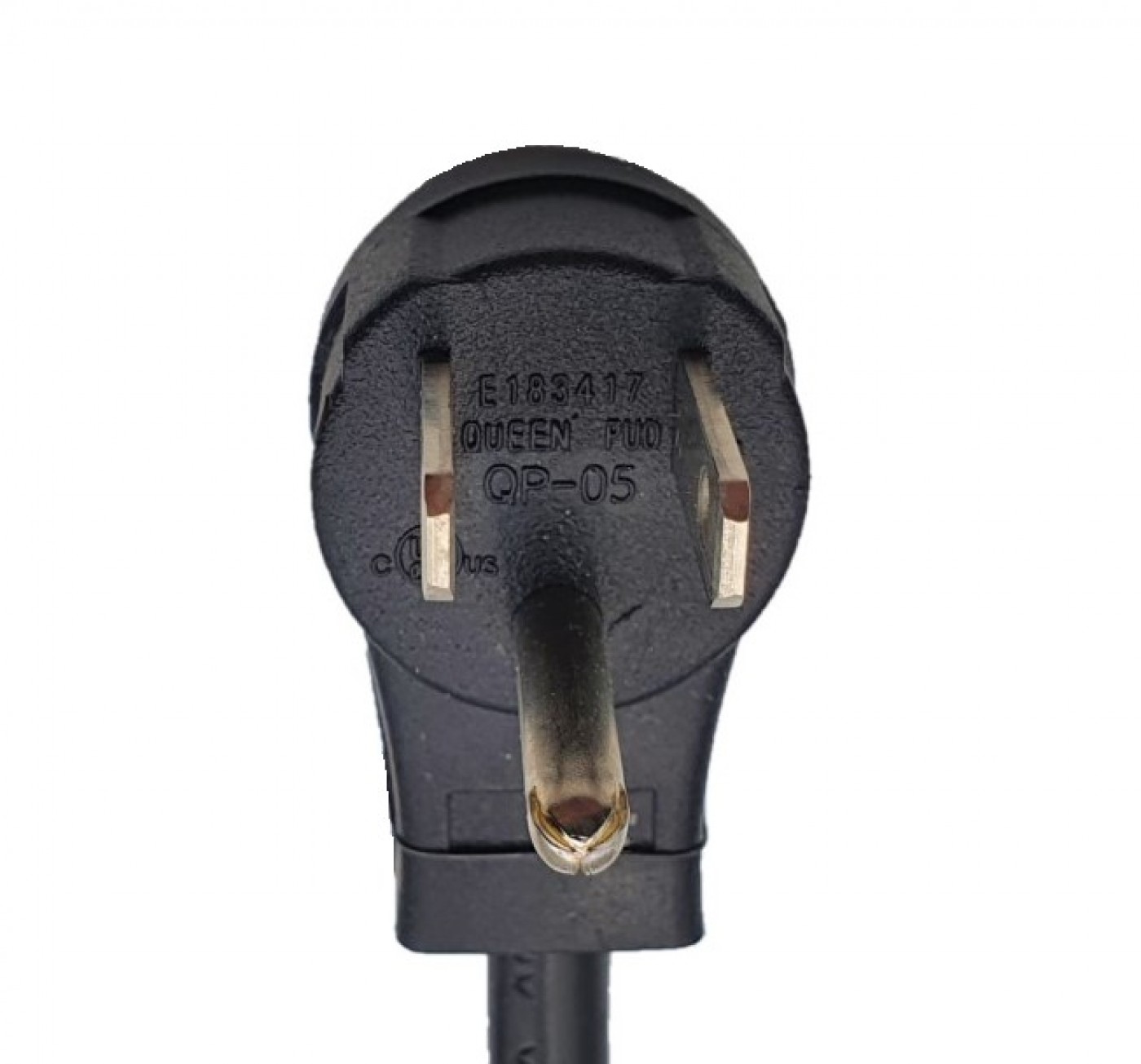

QP033D-QP05 - North American plug 3 poles 10-13-15A angled
North American cordsets
QP033D-QP05 - North American plug 3 poles 10-13-15A angled
North American cordsets
Cordset data:
According approvals
UL 817 (Nema 5-15P)
Rating voltage
125V
Rating current
15A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
angled
Cable type and section:
SJT-14AWG
SJT-16AWG
SJT-18AWG
SJTW 14AWG
SJTW 16AWG
SJTW 18AWG
SPT-1 16AWG
SPT-1 18AWG
SPT-2 16AWG
SPT-2 18AWG
SPT-3 18AWG
SVT 18AWG
