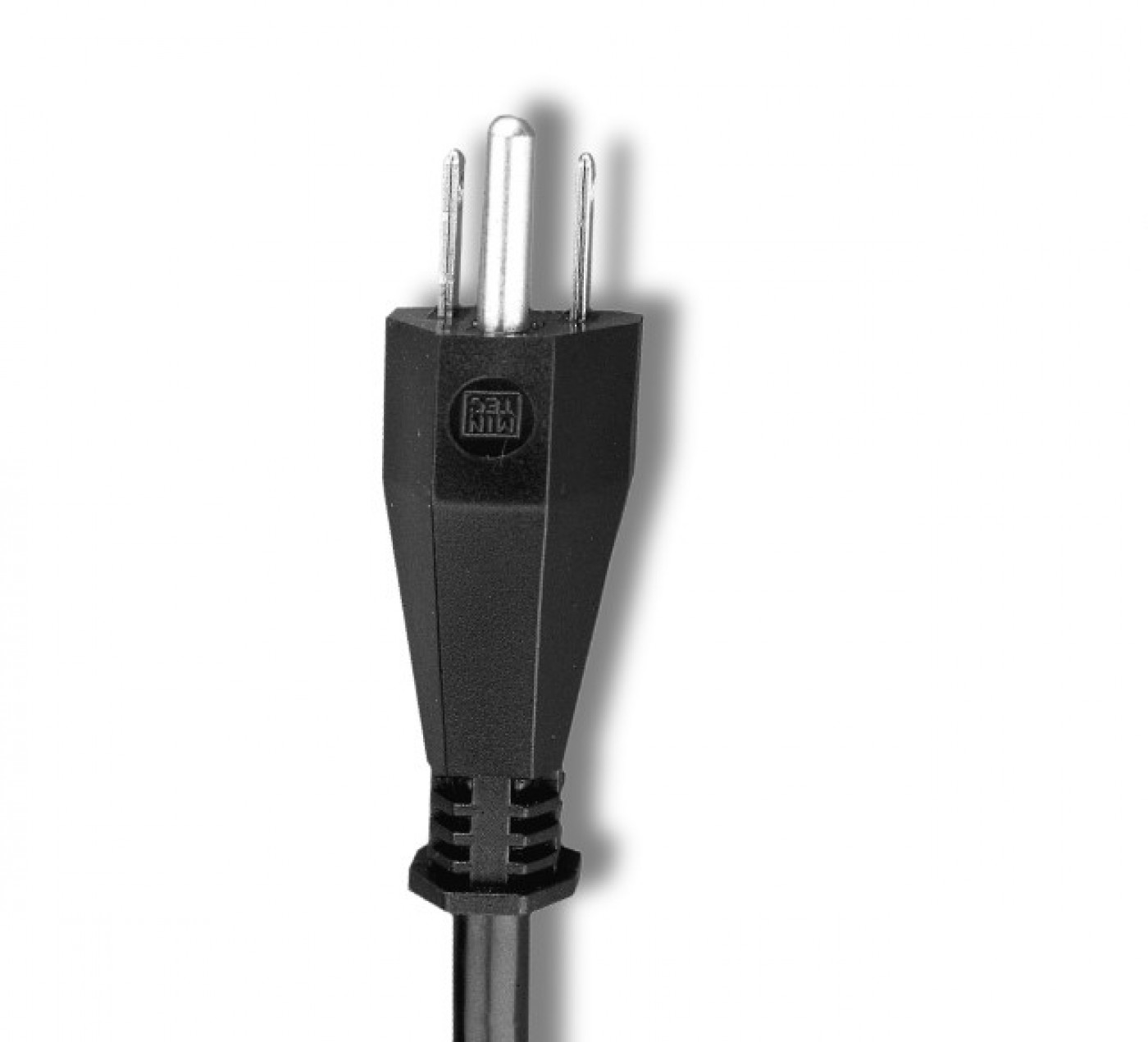

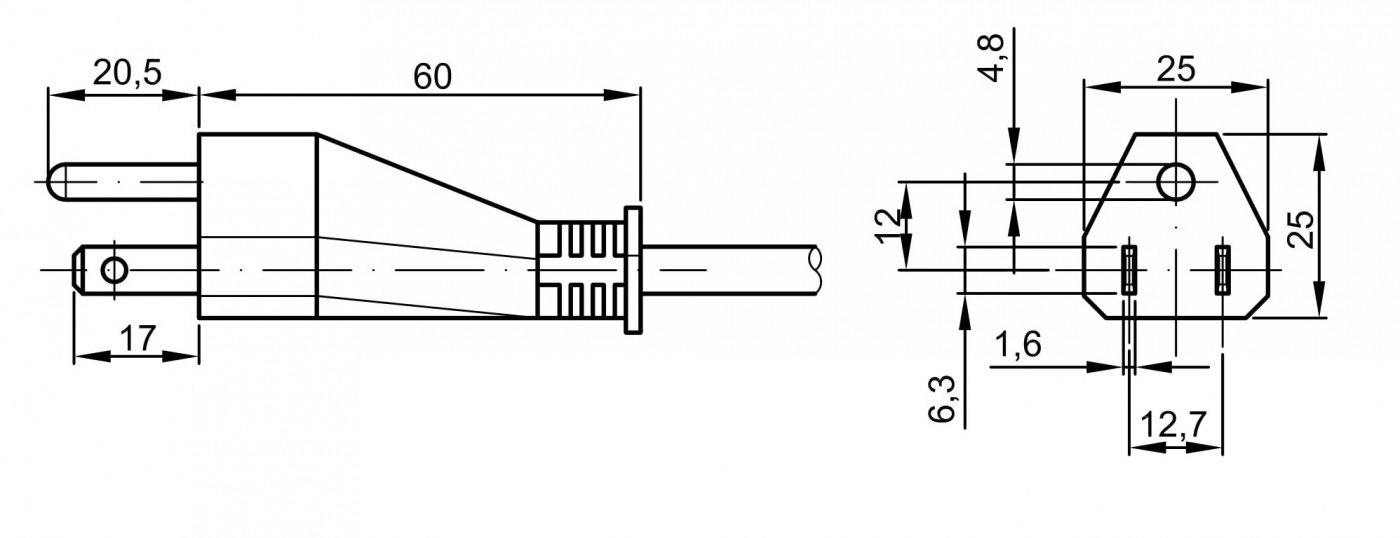

P620 - North American Plug 3 poles 15A straight
North American cordsets
P620 - North American Plug 3 poles 15A straight
North American cordsets
Cordset data:
According approvals
UL 817 (Nema 5-15P)
Rating voltage
125V
Rating current
15A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
SJ 14AWG
SJ 16AWG
SJ 18AWG
SJOO 14AWG
SJOO 16AWG
SJOO 18AWG
SJOOW 14AWG
SJOOW 16AWG
SJOOW 18AWG
SJT-14AWG
SJT-16AWG
SJT-18AWG
SJTOO 14AWG
SJTOO 16AWG
SJTOO 18AWG
SJTOOW 14AWG
SJTOOW 16AWG
SJTOOW 18AWG
SJTOW 14AWG
SJTOW 16AWG
SJTOW 18AWG
SJTW 14AWG
SJTW 16AWG
SJTW 18AWG
ST 16AWG
STO 16AWG
STOO 16AWG
STOOW 16AWG
STOW 16AWG
STW 16AWG
SVT 18AWG
