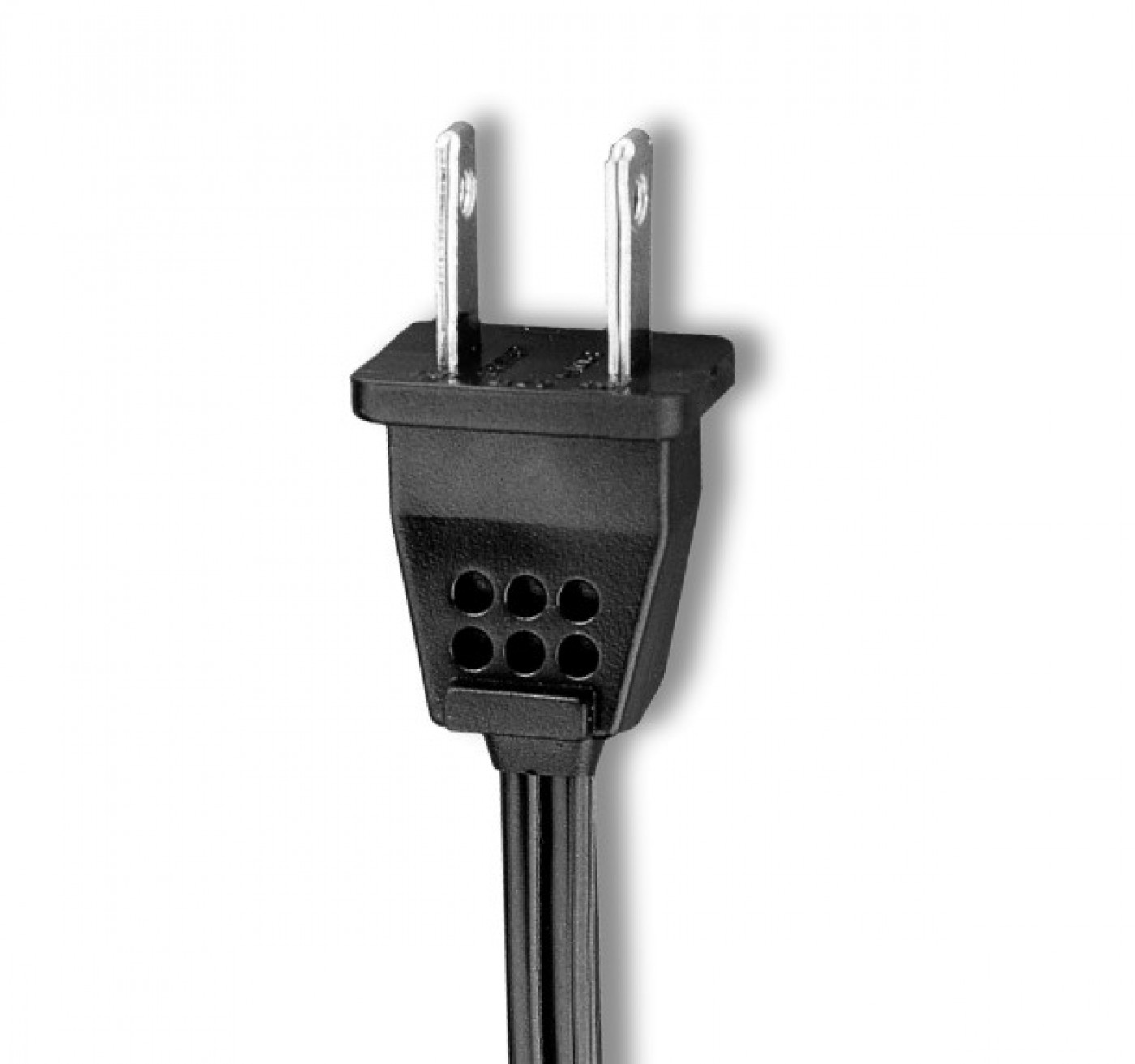

O715-O715N - North American Plug 2 poles 15A straight
North American cordsets
O715-O715N - North American Plug 2 poles 15A straight
North American cordsets
Cordset data:
According approvals
UL 817 (Nema 1-15P)
Rating voltage
125V
Rating current
15A
Protection degree
IP 20
External insulation
PVC
Terminals type
European Plug 2 poles 16A straight
Cable exit
straight
Cable type and section:
SJ-14AWG
SJ-16AWG
SJ-18AWG
SPT-1 16AWG
SPT-1 18AWG
SPT-2 16AWG
SPT-2 18AWG
Approvals:
