Print sheet

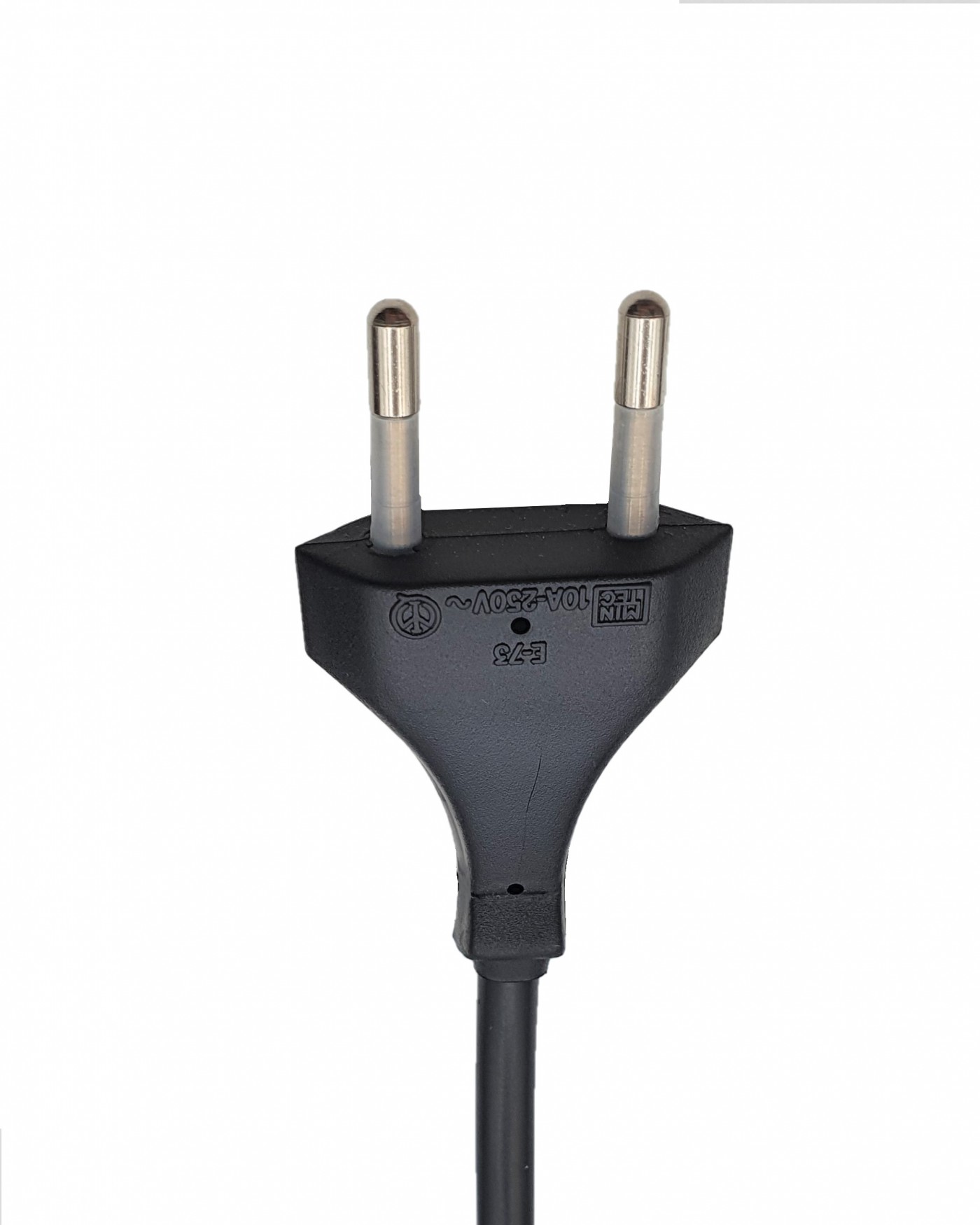

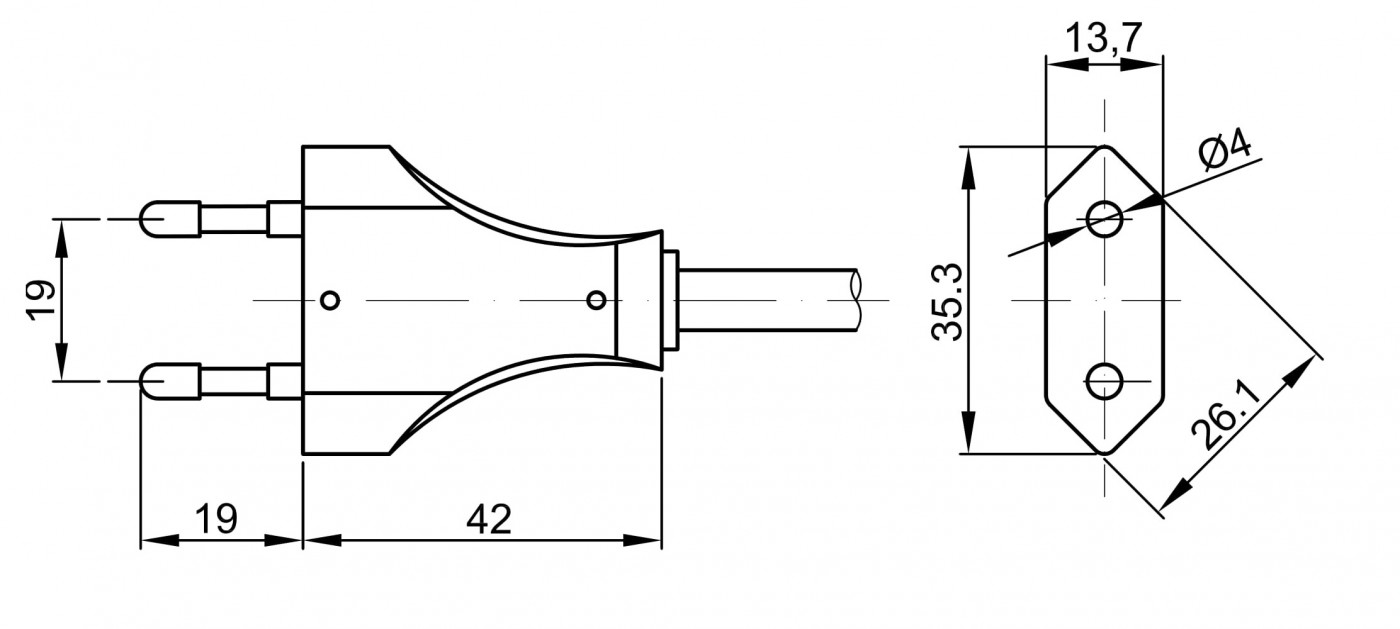

E73 - Italian Plug 2 poles 10A straight
Italian cordsets

E73 - Italian Plug 2 poles 10A straight

Italian cordsets
Cordset data:
According approvals
CEI 23-50
Rating voltage
250V
Rating current
10A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
H03VV-F 2x0.75mm²
H03VVH2-F 2x0.75mm²
H05RN-F 2x0.75mm²
H05RN-F 2x1mm²
H05VV-F 2x0.75mm²
H05VV-F 2x1mm²
H05VVH2-F 2X0.75mm²
Approvals:
