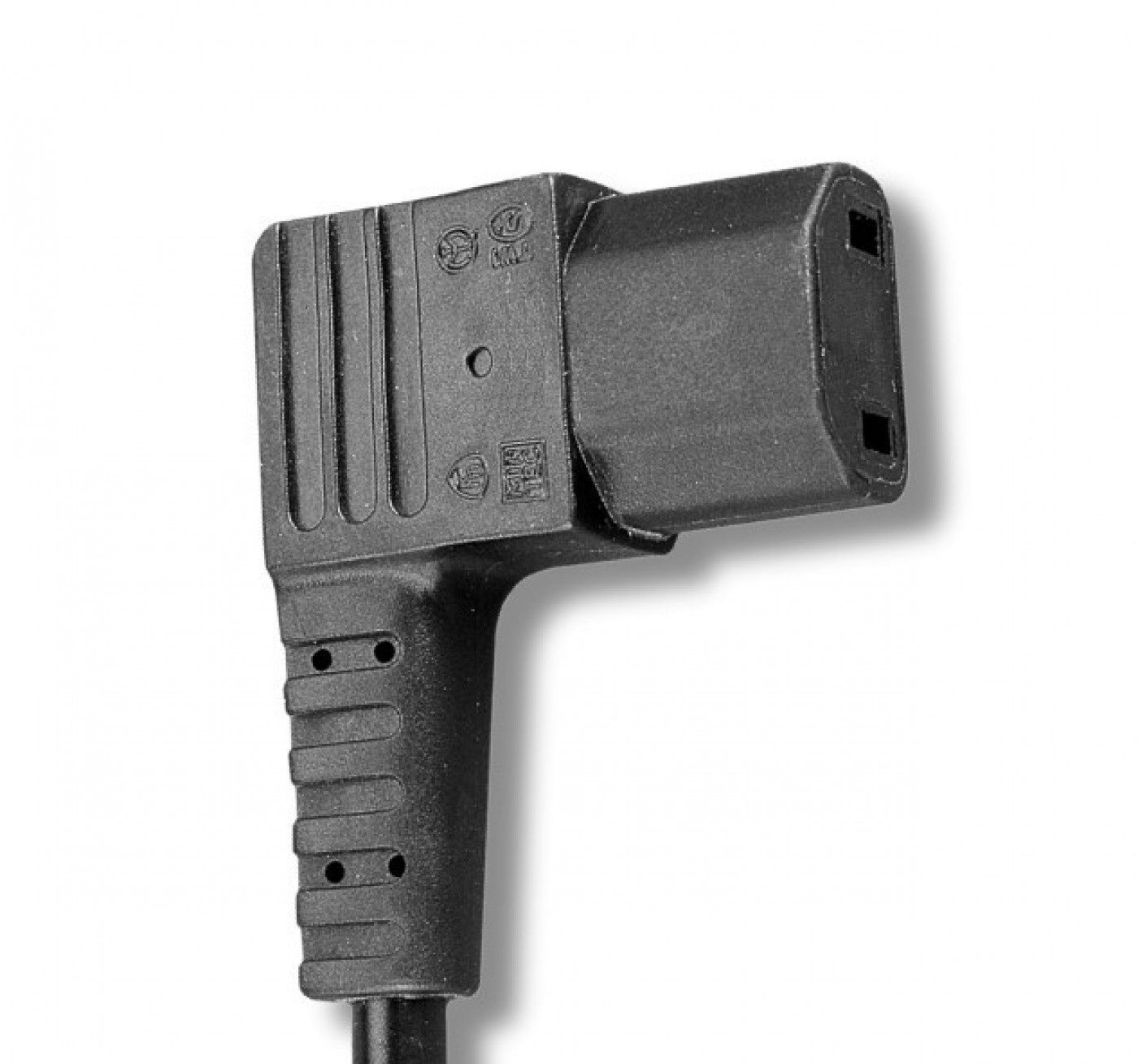

PW82 - Female connector 2 poles 10A angled
European "ENEC" cordsets

PW82 - Female connector 2 poles 10A angled

European "ENEC" cordsets
Cordset data:
According approvals
EN 60320 (C17)
Rating voltage
250V
Rating current
10A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
angled
Cable type and section:
H05VV-F 2x0.75mm²
H05VV-F 2x1mm²
