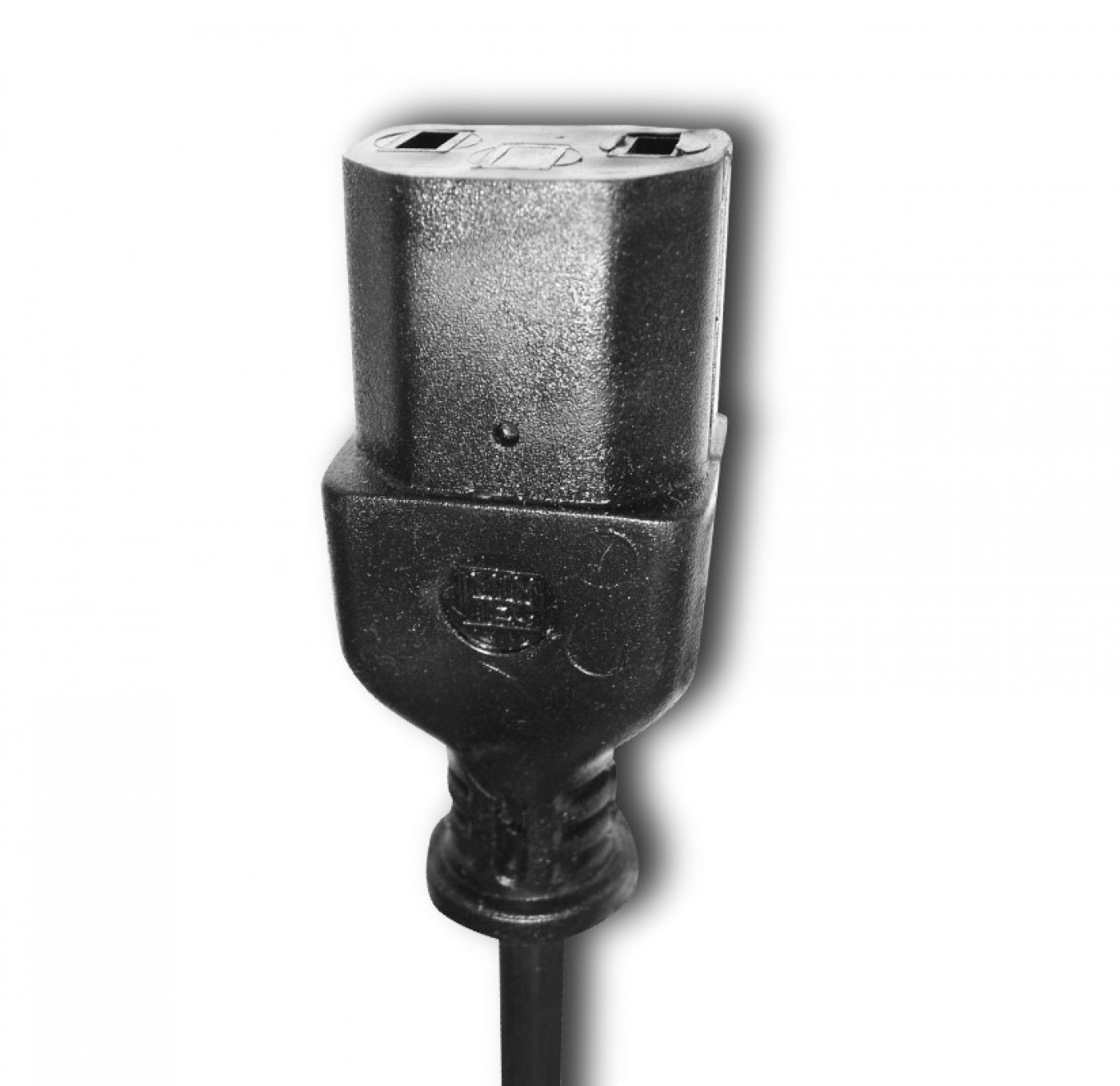

PA85 - Female connector 2 poles 10A straight
European "ENEC" cordsets

PA85 - Female connector 2 poles 10A straight

European "ENEC" cordsets
Cordset data:
According approvals
EN 60320 (C17)
Rating voltage
250V
Rating current
10A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
H05VV-F 2x0.75mm²
Approvals:
X
