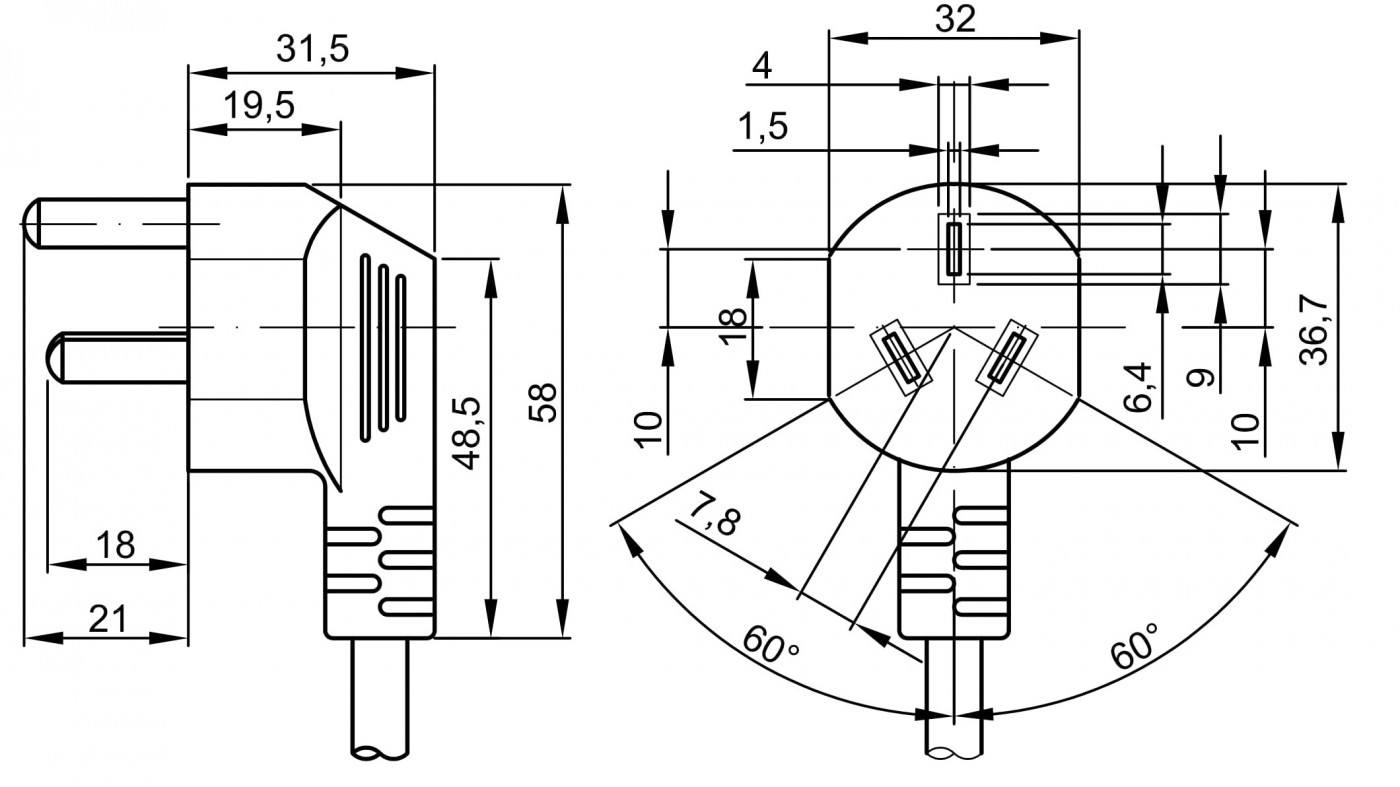

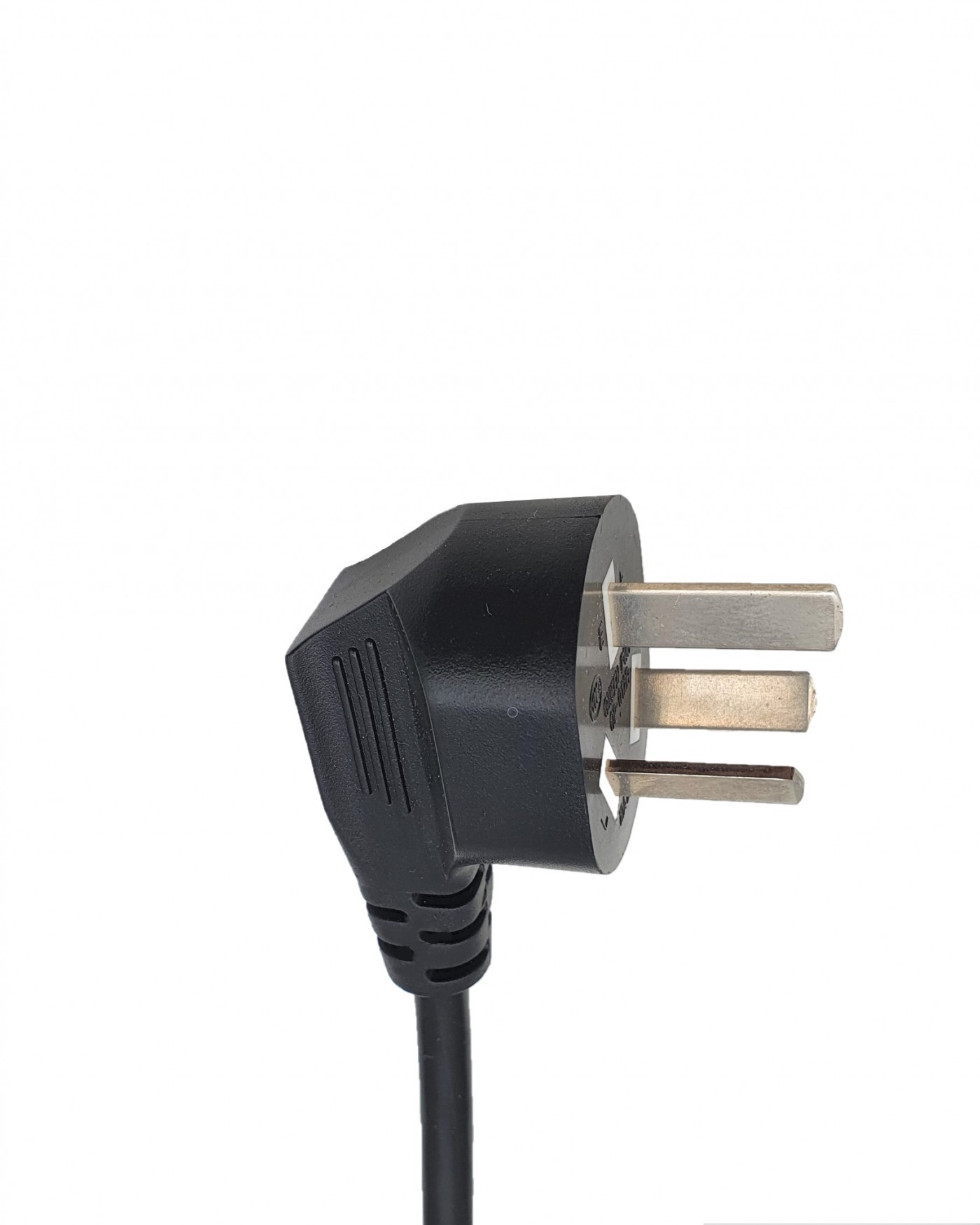

QP012R - Chinese plug 3 poles 6-16A angled
Chinese cordsets
QP012R - Chinese plug 3 poles 6-16A angled
Chinese cordsets
Cordset data:
According approvals
GB 1002
Rating voltage
250V
Rating current
6-16A
Protection degree
IP 20
External insulation
PVC
Terminals type
nichel plated brass_crimped connection
Cable exit
straight
Cable type and section:
H03VV-F 3G0.75mm²
H05RN-F 3G0.75mm²
H05RN-F 3G1mm²
H05RR-F 3G0.75mm²
H05RR-F 3G1.5mm²
H05RR-F 3G1mm²
H05VV-F 3G0.75mm²
H05VV-F 3G1.5mm²
H05VV-F 3G1mm²
Approvals:
