D084S8-000-A00

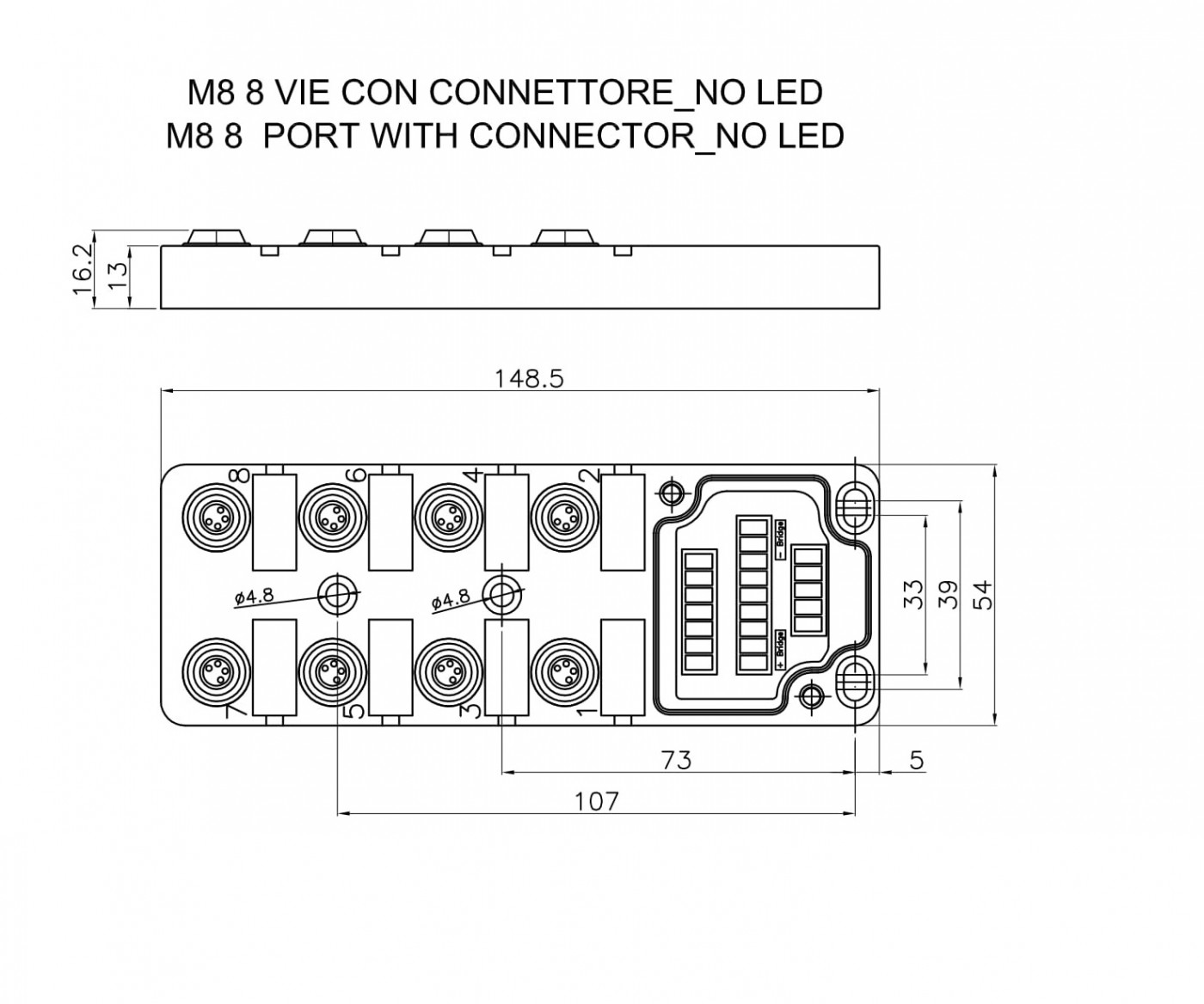

Sistema di distribuzione M8 per attuatori a 8 vie_con calotta di connessione_no Led
D084S8-000-A00
Sistema di distribuzione M8 per attuatori a 8 vie_con calotta di connessione_no Led
Download Step-File
Length
-
Code
47459-000
EAN code
Customrate
85444290
Series:
Passive distributors I/O, M8x1 series
Code/Initials
D08
Reference norm
IEC 61076-2-101
Protection degree
IP67,
Pollution degree
3
Operating temperature
-30°C … +85°C
No unscrewing ring-nut
Nickel-plated Brass
Contacts material
Gold-plated Brass
External insulation
PA plastic
Contacts holder
PA plastic
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
1000 Cycles max
Poles:
4 poles - M8x1 Passive distributors
Number of poles
4
Max rating voltage
10÷30V DC
Max rating current
2A for port ÷ 8A max total
Circuit
pin to pin
