D083P4-000-A00

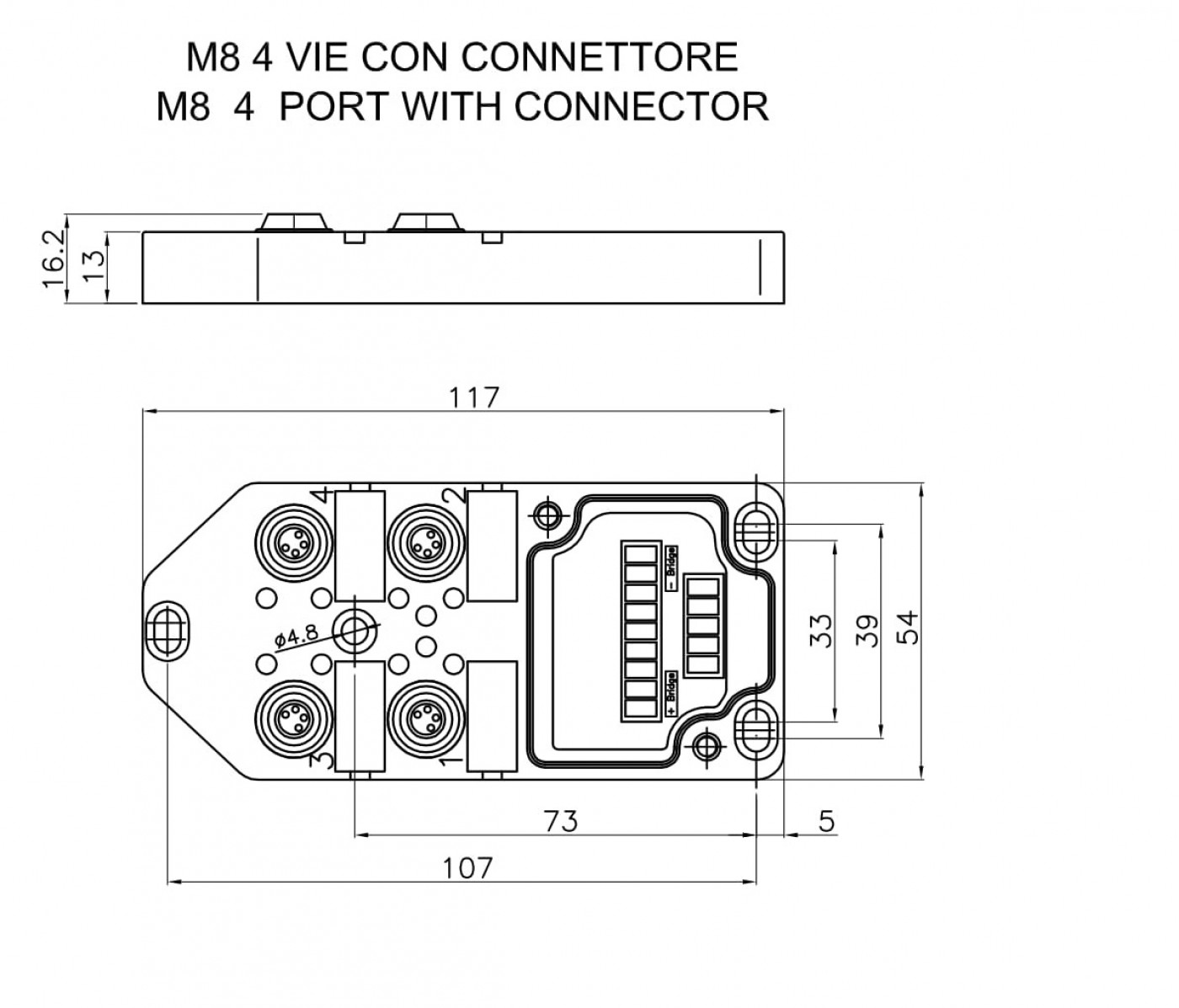

Passive M8 distribution box for actuators with 4 ports and with LEDS_ output with link connector
D083P4-000-A00
Passive M8 distribution box for actuators with 4 ports and with LEDS_ output with link connector
Download Step-File
Length
-
Code
47389-000
EAN code
Customrate
85444290
Series:
Passive distributors I/O, M8x1 series with link connector
Code/Initials
D08
Reference norm
IEC 61076-2-101
Protection degree
IP67 in mated condition
Pollution degree
3
Operating temperature
-30°C … +85°C
No unscrewing ring-nut
Nickel-plated Brass
Contacts material
Gold-plated Brass
External insulation
PA plastic
Contacts holder
PA plastic
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
1000 Cycles max
Poles:
3 poles - Passive distributors M8x1 with Leds
Number of poles
3
Max rating voltage
10÷30V DC
Max rating current
2A for port ÷ 8A max total
Status signal
Yellow/Green

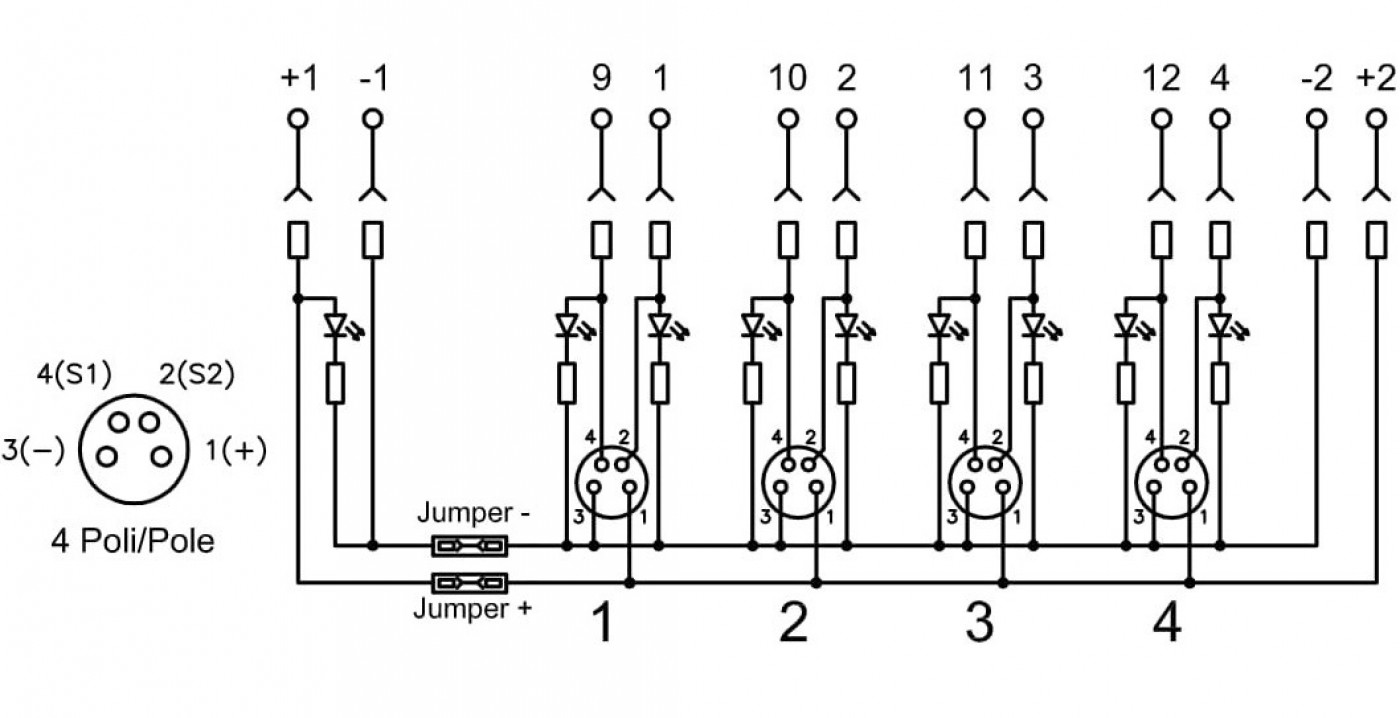

Circuit
to report status
