D125S0-000-B00

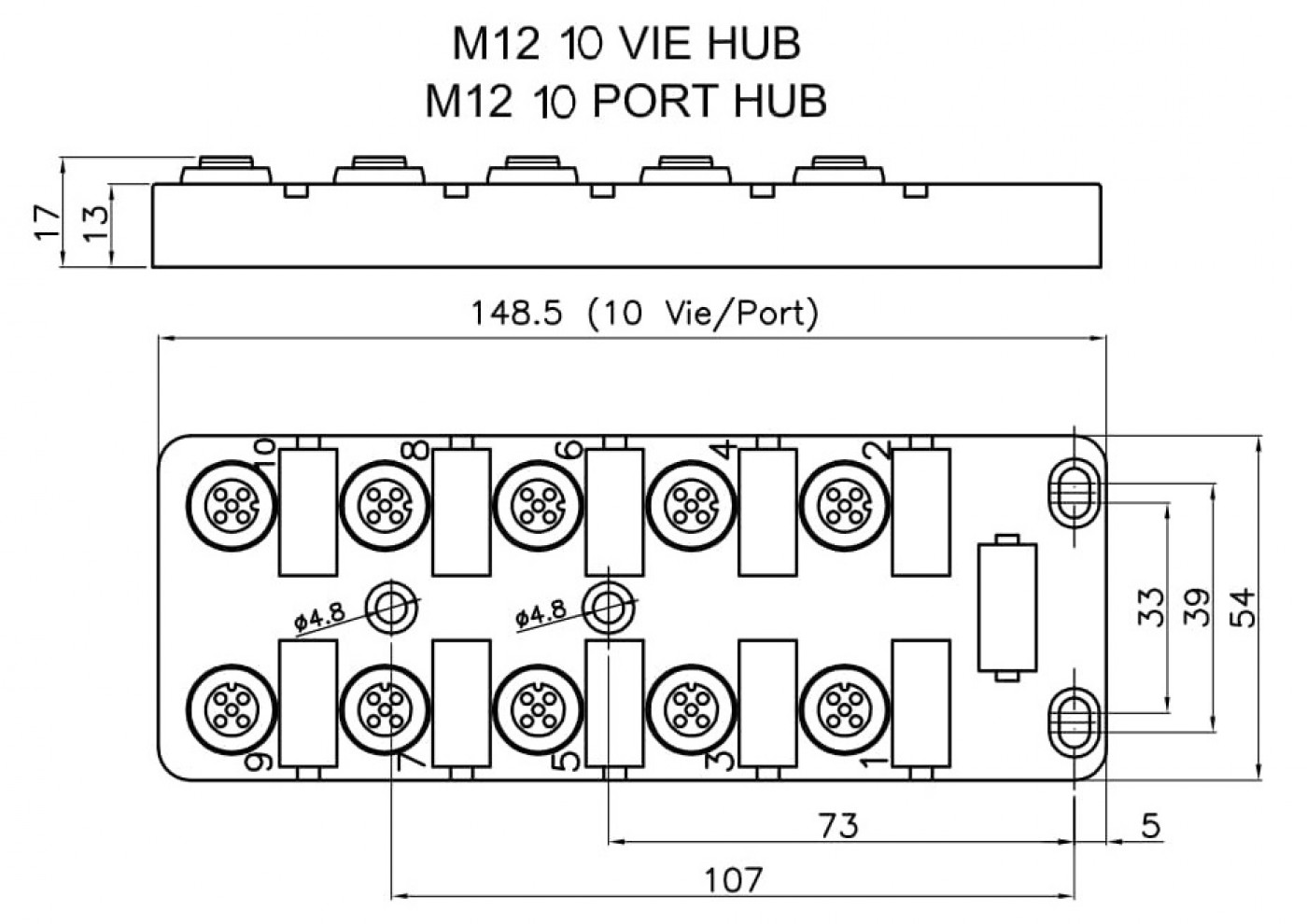

HUB M12 distribution box for actuators with 10 ports without LEDS_ No cable
D125S0-000-B00
HUB M12 distribution box for actuators with 10 ports without LEDS_ No cable
Download Step-File
Length
-
Code
47179-100
EAN code
Customrate
85444290
Series:
Distributori passivi I/O, serie M12x1
Code/Initials
D12
Reference norm
IEC 61076-2-101
Protection degree
IP67
Pollution degree
3
Operating temperature
-30°C … +85°C
No unscrewing ring-nut
ottone nichelato
Contacts material
Ottone dorato
External insulation
Plastico PA
Contacts holder
Plastico PA
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
Max 1000 cicli
Poles:
5 poles - Passive distributors M12x1
Number of poles
5
Max rating voltage
10÷30V DC
Max rating current
4A for port ÷ 12A max total
Status signal
-

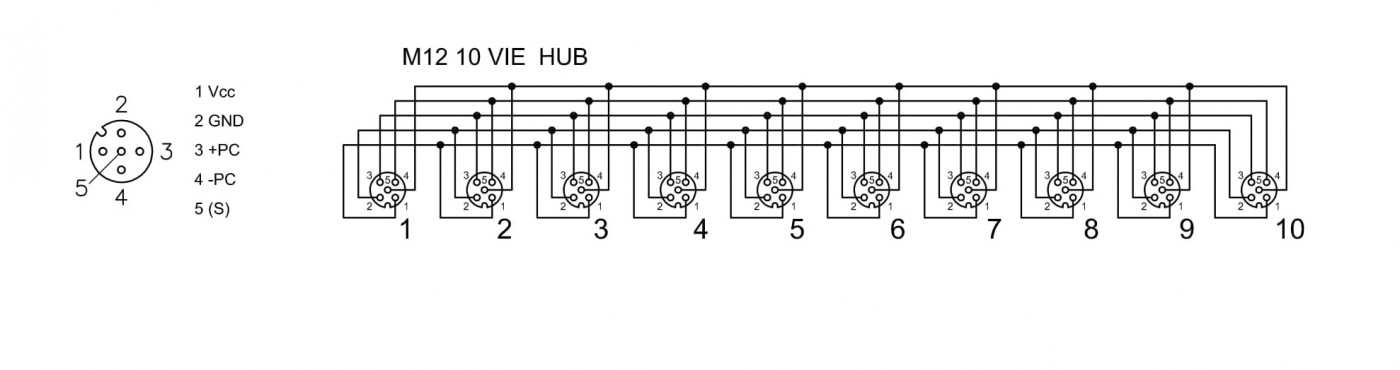

Circuit
pin to pin
