SAZ3A0-000-

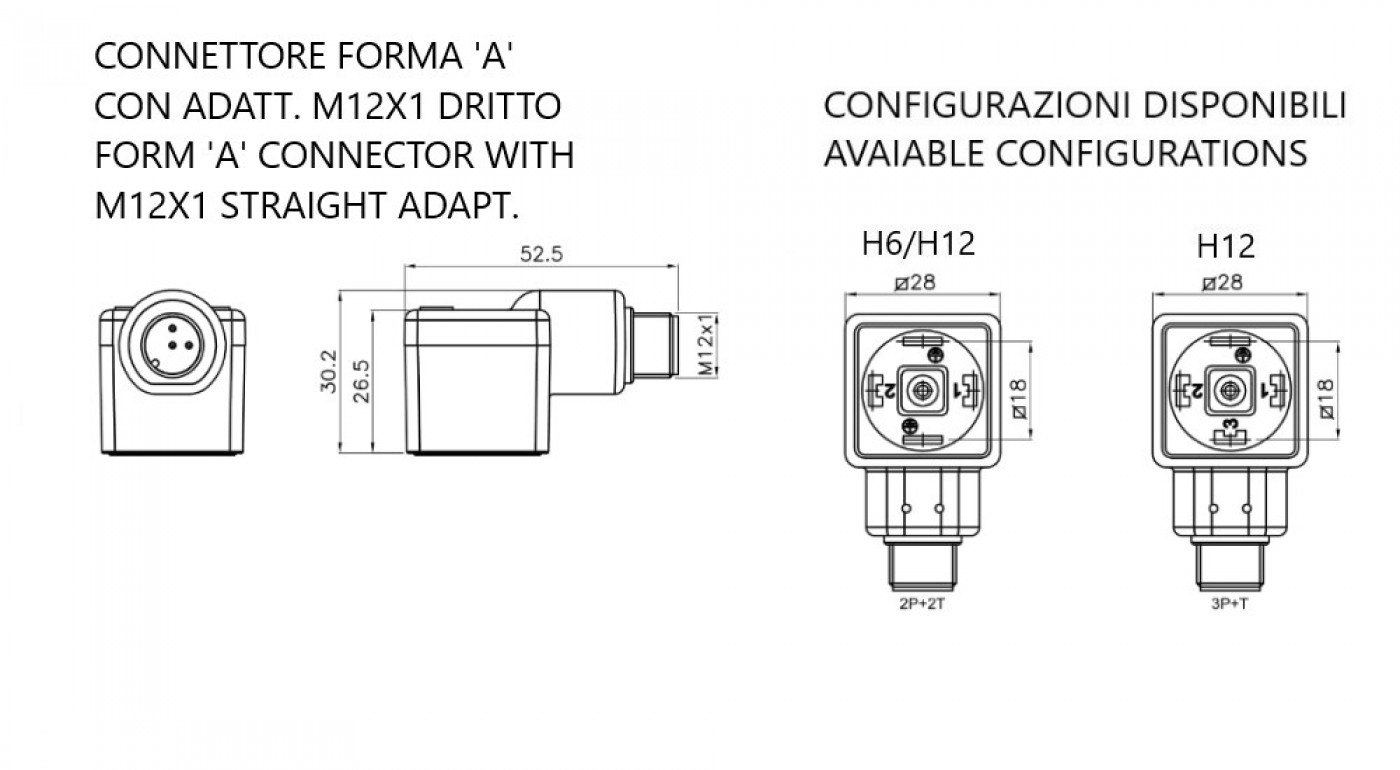

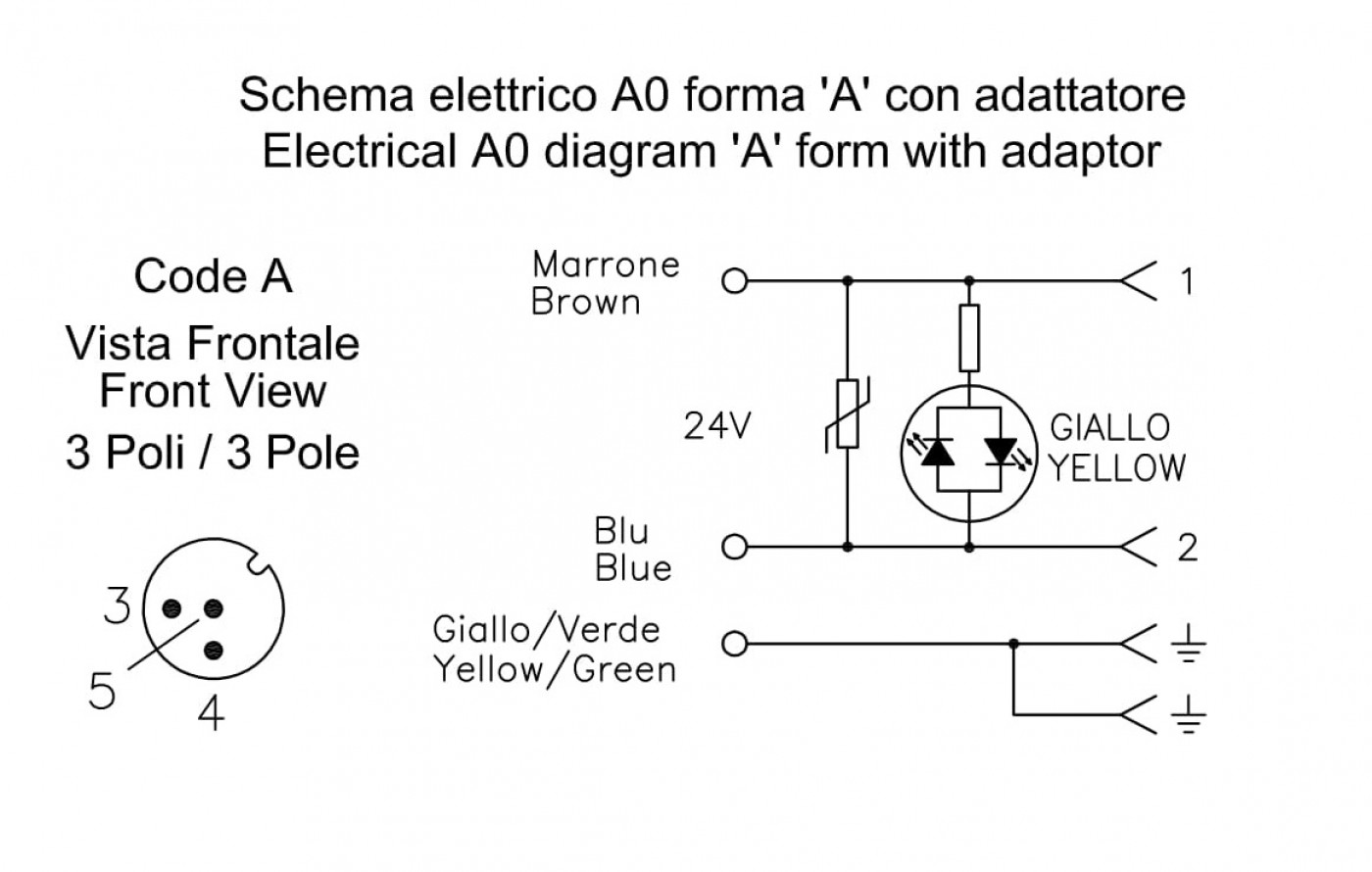

Actuator connector DIN 'A' shape, double earth, with M12 adapter output + A0 circuit
SAZ3A0-000-
Actuator connector DIN 'A' shape, double earth, with M12 adapter output + A0 circuit
Download Step-File
Length
-
Code
45309-010
EAN code
Customrate
85444290
Series:
Printed valve EN 175301-803 connectors
Code/Initials
S
Reference norm
EN 175301-803 (ex DIN 43650)
Protection degree
IP67, IP68*
Pollution degree
3
Operating temperature
-25°C … +80°C
Contacts material
Nickel-plated Brass
External insulation
TPU (PUR) plastic
Contacts holder
PA plastic
Gasket
TPU (PUR) plastic
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
≥ 100 cycles
Fixing screw
galvanized steel
Poles:
2 poles + PE - Valves connector 'C' form
Number of poles
2 + PE (form A Double PE)
Max rating voltage
250V
Max rating current
6A
