CJC2J1-060-353

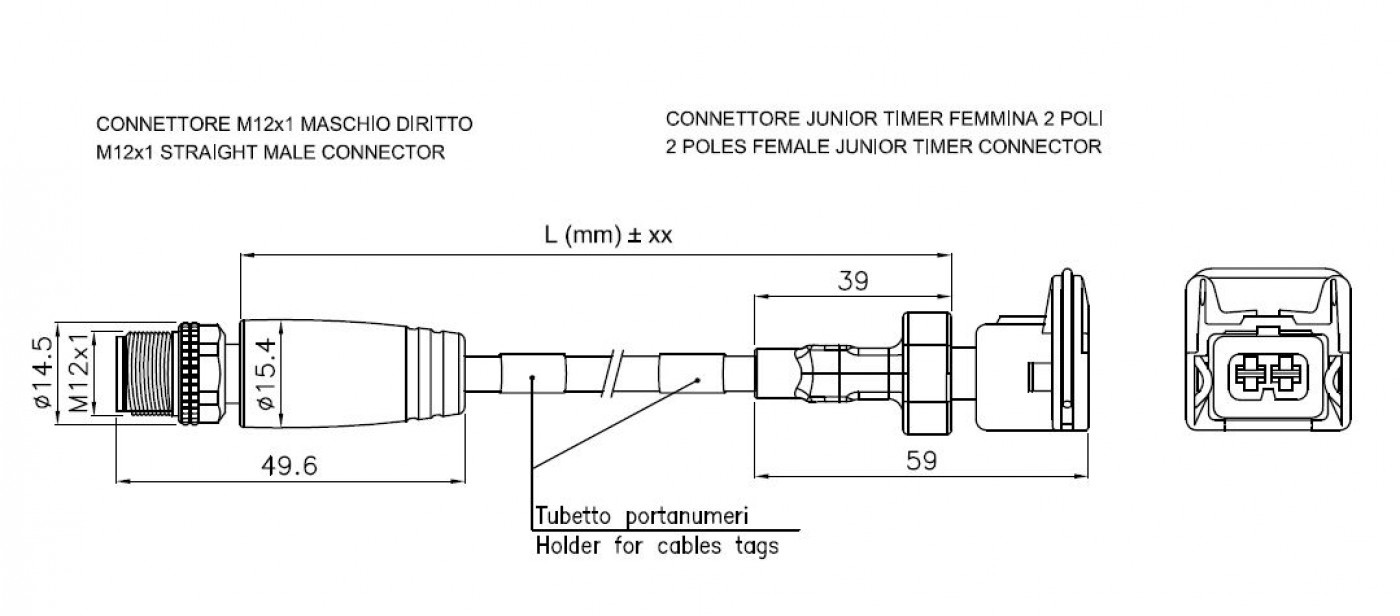

Double ended Junior Timer 2pl FE+M12 0.6mm
CJC2J1-060-353
Double ended Junior Timer 2pl FE+M12 0.6mm
Download Step-File
Length
600mm
Code
45003-101
EAN code
Customrate
85444290
Series:
Valve connectors; JUNIOR TIMER series+M12
Code/Initials
CJ
Protection degree
IP65
Pollution degree
2/3
Operating temperature
-30°C … +85°C
Contacts material
Nickel-plated Brass
Contacts holder
PBT plastic
Gasket
Silicone
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
≥ 100 cycles

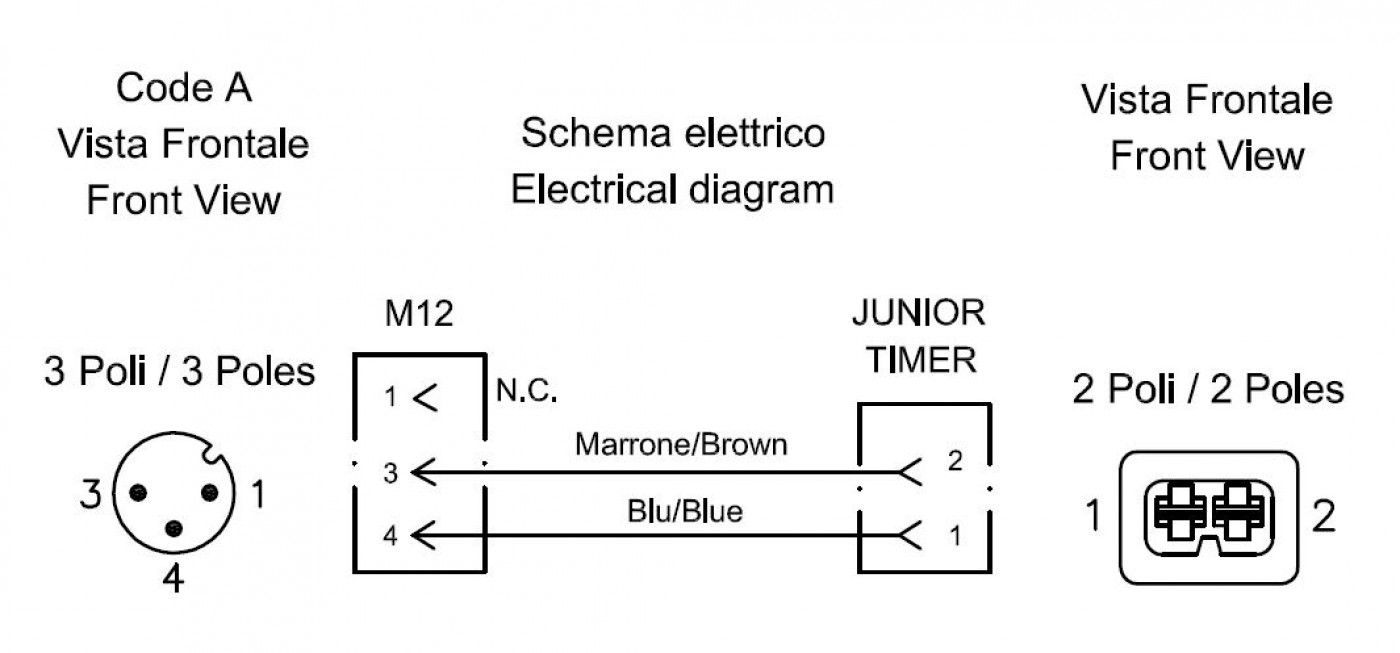

Poles:
2 poles - Junior Timer+M12
Number of poles
2
Max rating voltage
14V
Max rating current
6A
Cables:
PUR 2xAWG18 (0,75 mm²) 80° 300V UL Style
Code/Initials
0193334NE-16 / 353
Sheat material
PUR
Sheat diameter
5,60 mm ± 0,20
Sheat color
BK, RAL 9005
Conductors section
2AWG18 (0,75 mm²)
Insulation material of conductors
PP
Structure of conductors
41 x 0,16 mm
Conductors color
BR,BL
Cable rating voltage
≤ 300 V
Alogen free
sì
Radius of static installation
5 x diam. cavo
Radius of free installation
10 x diam. cavo
Work temperature
-40°C … +80°C
Work temperature
-25°C … +80°C
Shielding
no
