S2AZA3E020-150-155

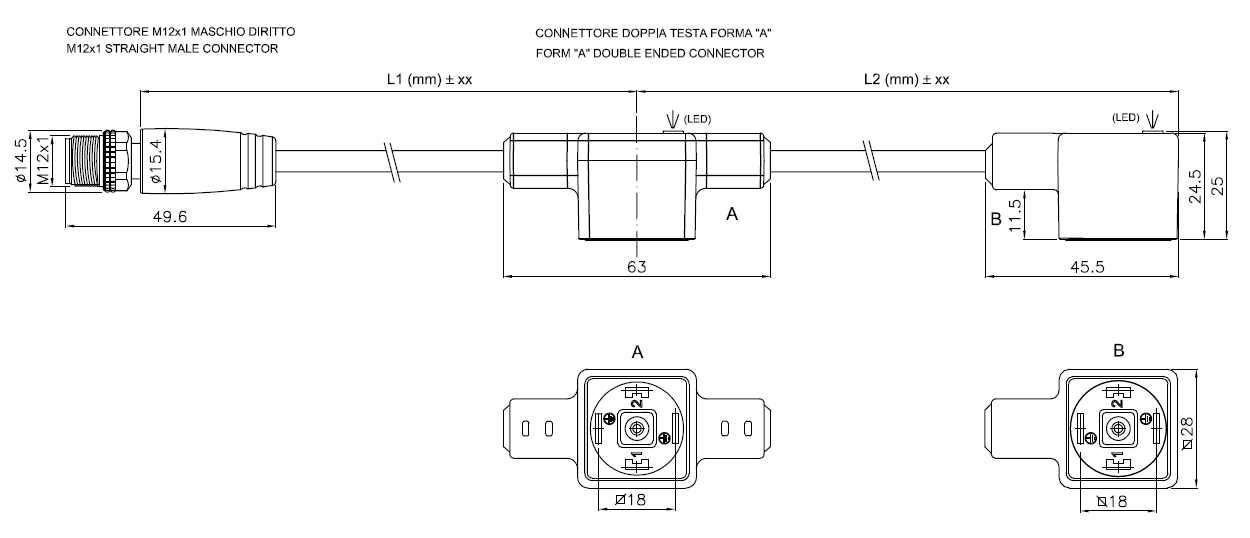

Double ended DIN Connector with double valve for actuators, 'A' shape, double earth, 4 poles with "E0" circuit_distance between two heads 200mm + M12_cable length_1,5mt
S2AZA3E020-150-155
Double ended DIN Connector with double valve for actuators, 'A' shape, double earth, 4 poles with "E0" circuit_distance between two heads 200mm + M12_cable length_1,5mt
Download Step-File
Length
1,5mt
Code
40100-203
EAN code
Customrate
85444290
Series:
Printed valve connectors, double head
Code/Initials
S2
Reference norm
EN 175301-803 (ex DIN 43650)
Protection degree
IP65, IP67, IP68*
Pollution degree
3
Operating temperature
-30°C … +85°C
Contacts material
Nickel-plated Brass
External insulation
TPU (PUR) plastic
Contacts holder
PA plastic
Gasket
TPU (PUR) plastic
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
≥ 100 cycles
Fixing screw
galvanized steel
Poles:
2 poles + PE - Valves connector 'A/BC' form with 'E' circuit
Number of poles
2 + PE (A form double PE)
Max rating voltage
30V
Max rating current
4A
Status signal
yellow led

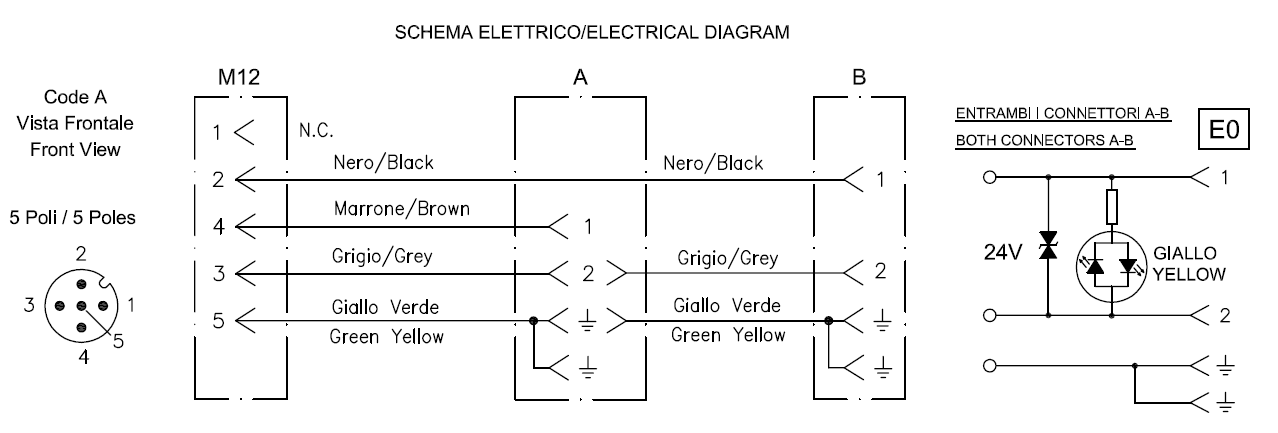

Circuit
LED and TRANSIL diode
Cables:
PUR 4 G 0,75 mm² 80°C 300V
Code/Initials
0193316NE / 155
Sheat material
PUR
Sheat diameter
6,40 mm ± 0,20
Sheat color
BK, RAL 9005
Conductors section
4 G 0,75 mm²
Insulation material of conductors
PP
Structure of conductors
24 x 0,20 mm
Conductors color
brown, grey, blue, yellow/green
Cable rating voltage
≤ 300 V
Alogen free
yes
Radius of static installation
5 x diam. cavo
Work temperature
-25°C … +70°C
Shielding
no
