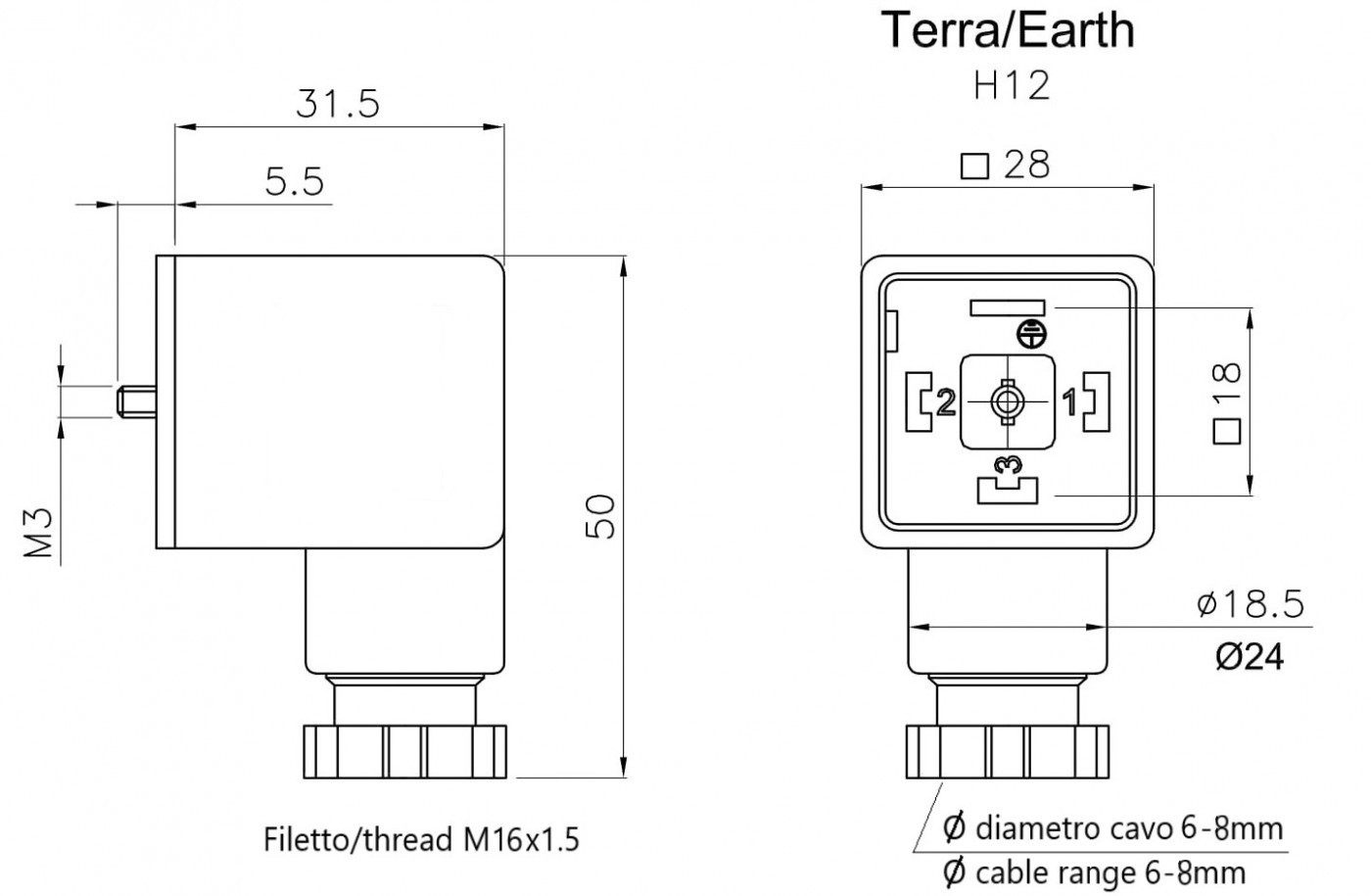

ZAD300-08-N1
Cnnector for actuators DIN 'A' form_wire to connect
ZAD300-08-N1
Cnnector for actuators DIN 'A' form_wire to connect
Download Step-File
Length
-
Code
49121-001
EAN code
Customrate
85444290
Series:
Actuator connectorEN 175301-803 to connect
Code/Initials
Z
Reference norm
EN 175301-803 (ex DIN 43650)
Protection degree
IP65
Pollution degree
2/3
Operating temperature
-25°C … +90°C
Contacts material
Nickel-plated Brass
External insulation
PA plastic
Contacts holder
PA plastic
Gasket
NBR
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
≥ 100 cycles
Fixing screw
galvanized steel
Poles:

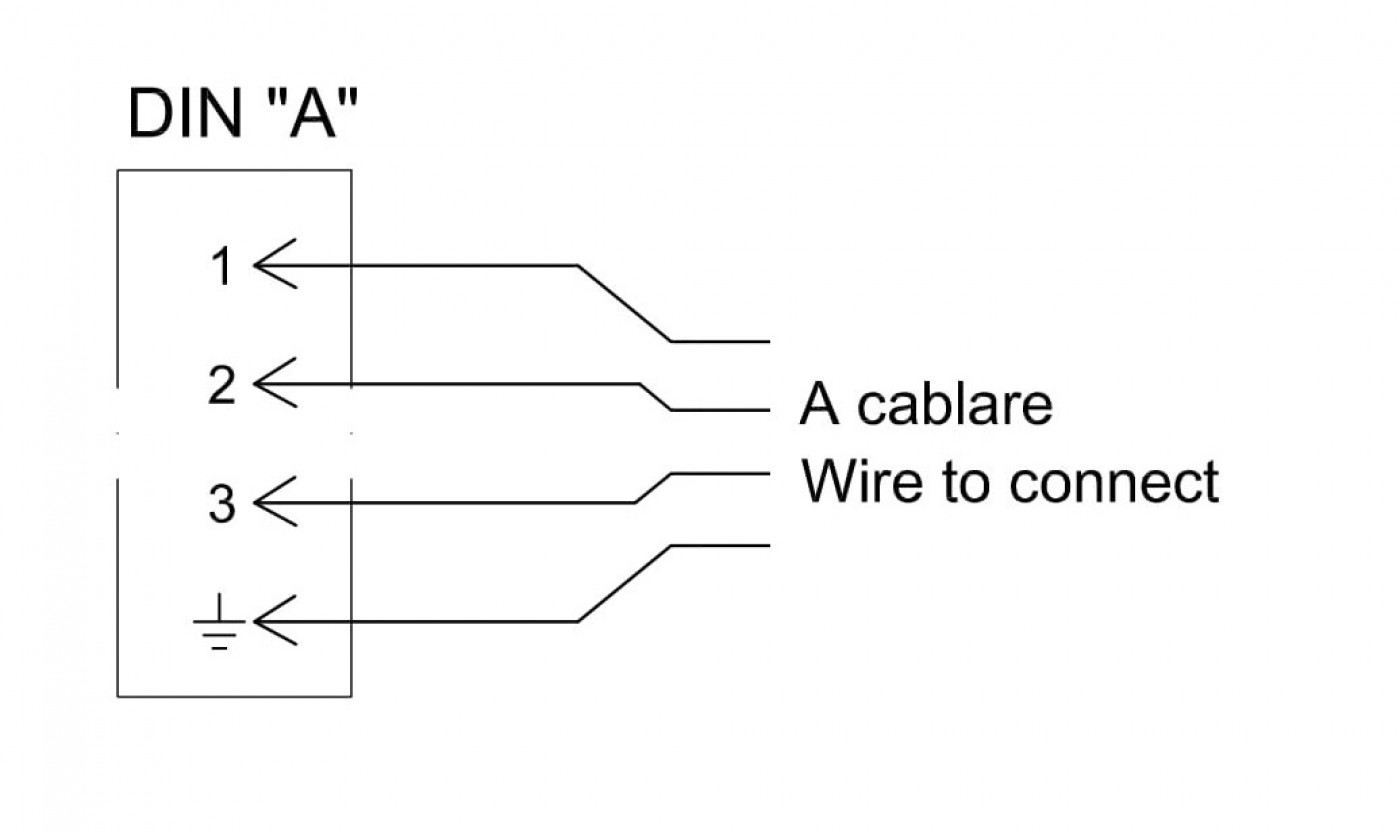

2 poli + PE - Valves connector 'A/B' form with fields attachable
Number of poles
2 + PE
Max rating voltage
250V
Max rating current
10A
