CHC4H1-030-145

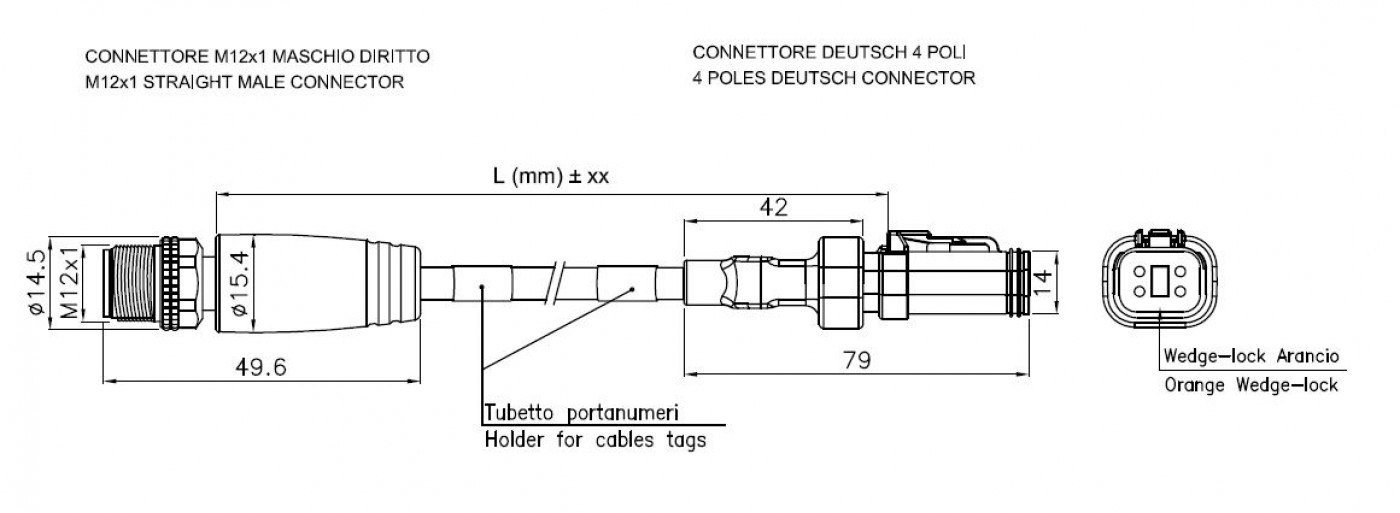

Double ended Deutsch (DT06) 4poles +M12 0.3m
CHC4H1-030-145
Double ended Deutsch (DT06) 4poles +M12 0.3m
Download Step-File
Length
300mm
Code
45521-100
EAN code
Customrate
85444290
Series:
Valves connectors, duble ended Deutsch (DT06)+M12 series
Code/Initials
CH
Protection degree
IP67
Pollution degree
2/3
Operating temperature
-30°C ... +85°C
Contacts material
Nickel-plated Brass
Contacts holder
PA plastic
Gasket
Silicone
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
≥ 100 cycles
Poles:
4 poles - Deutsch+M12
Number of poles
4
Max rating voltage
250Vdc
Max rating current
13A
Cables:
PUR 4 x 0,75 mm² 80°C 300V
Code/Initials
0193376NE / 145
Sheat material
PUR
Sheat diameter
6,40 mm ± 0,20
Sheat color
BK, RAL 9005
Conductors section
4 x 0,75 mm²
Insulation material of conductors
PP
Structure of conductors
24 x 0,20 mm

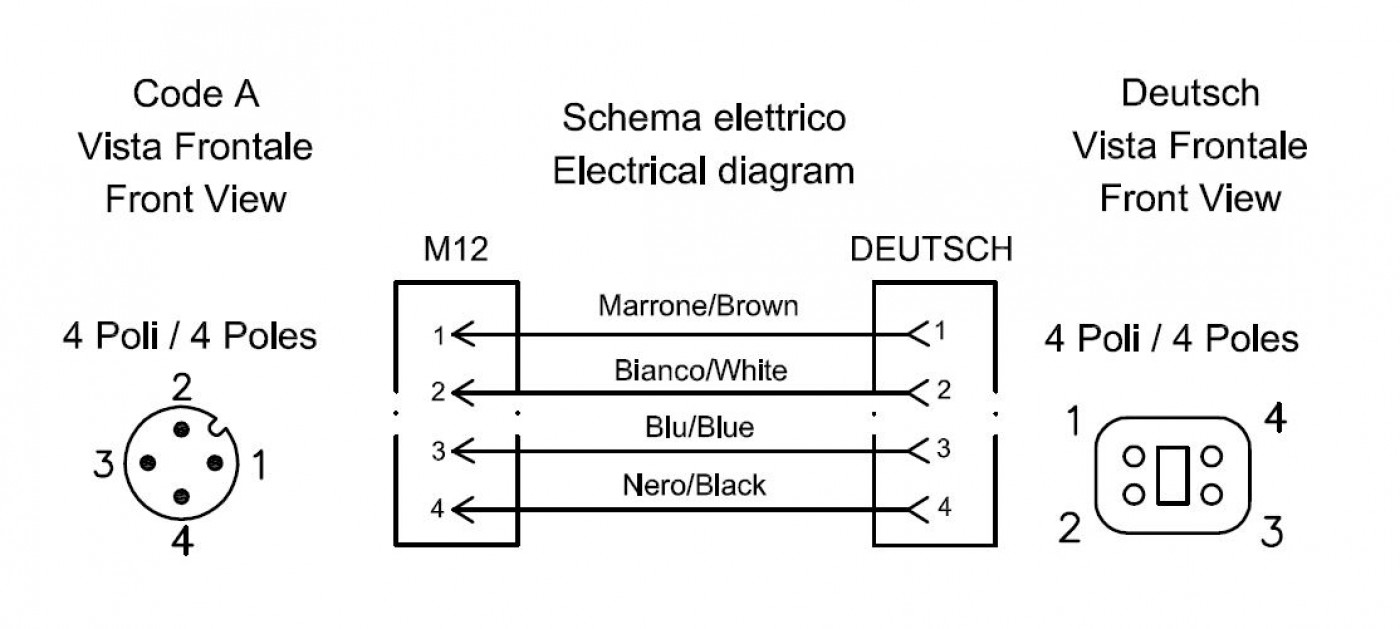

Conductors color
brown, white, blue, black
Cable rating voltage
≤ 300 V
Alogen free
yes
Radius of static installation
5 x diam. cavo
Work temperature
-25°C … +70°C
Shielding
no
