WB12M5G1-009-A

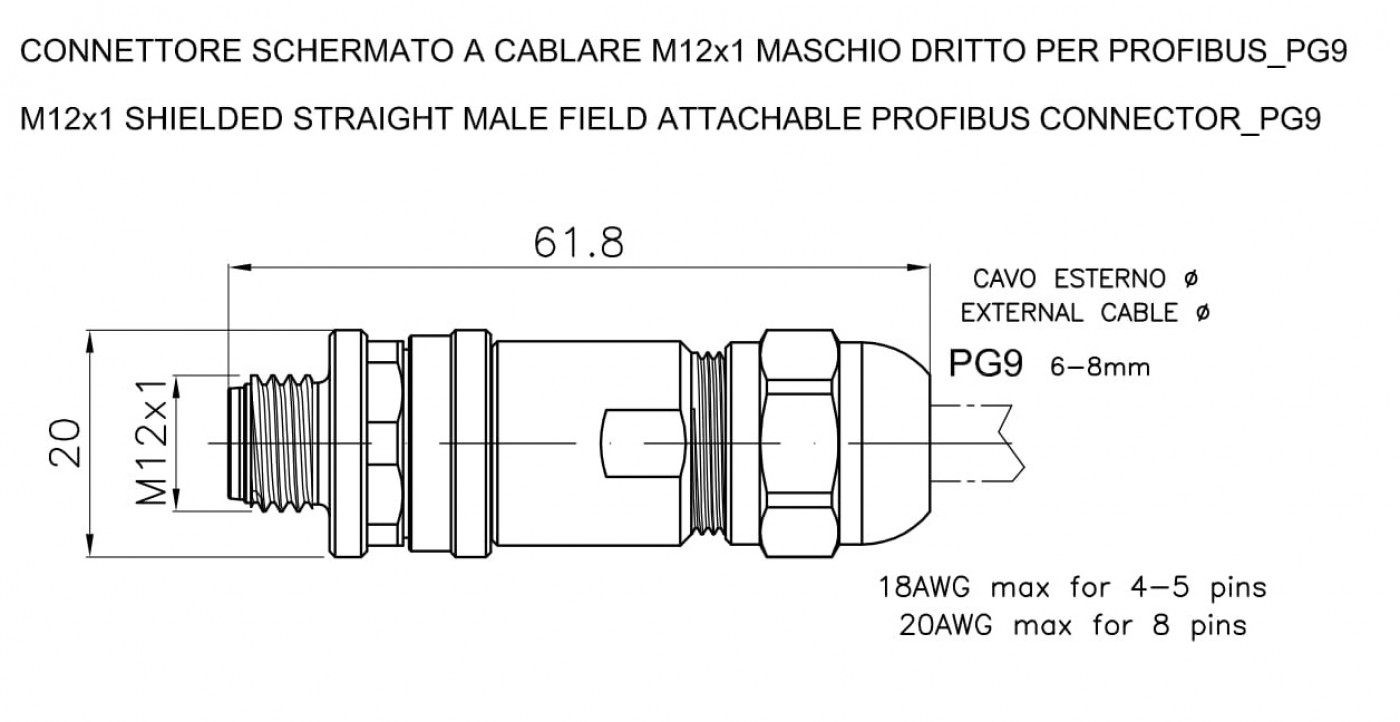

M12 Male Profibus and shielded connector_5 poles 'B' code_field attachable_PG9
WB12M5G1-009-A
M12 Male Profibus and shielded connector_5 poles 'B' code_field attachable_PG9
Download Step-File
Length
-
Code
46790-002
EAN code
Customrate
85444290
Series:
Profibus connectors, M12x1 series, to wire TE
Code/Initials
WP12
Reference norm
IEC 61076-2-101
Protection degree
IP67
Pollution degree
3
Operating temperature
-40°C … +85°C
No unscrewing ring-nut
Nickel plated
Contacts material
Gold-plated Brass
External insulation
Nickel plated
Contacts holder
PA plastic
Gasket
Silicone
Insulation resistance
≥ 100MΩ
Contact resistance
≤ 8mΩ
Mechanical operations
100 Cycles max

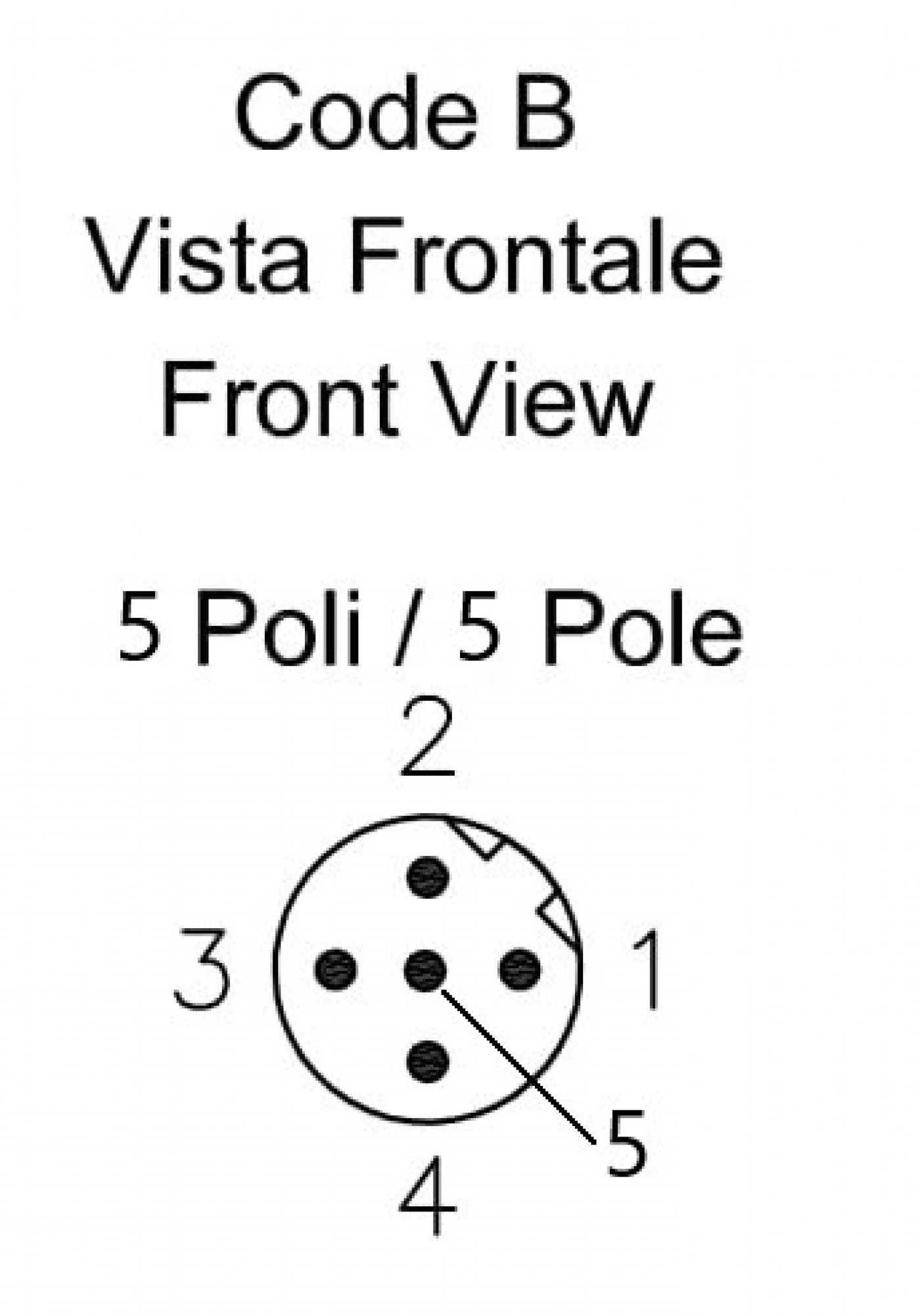

Poles:
5 poles - Profibus with fields attachable
Number of poles
5
Max rating voltage
60V
Max rating current
4A
Coding
B code
