QB12F5-F1-B030

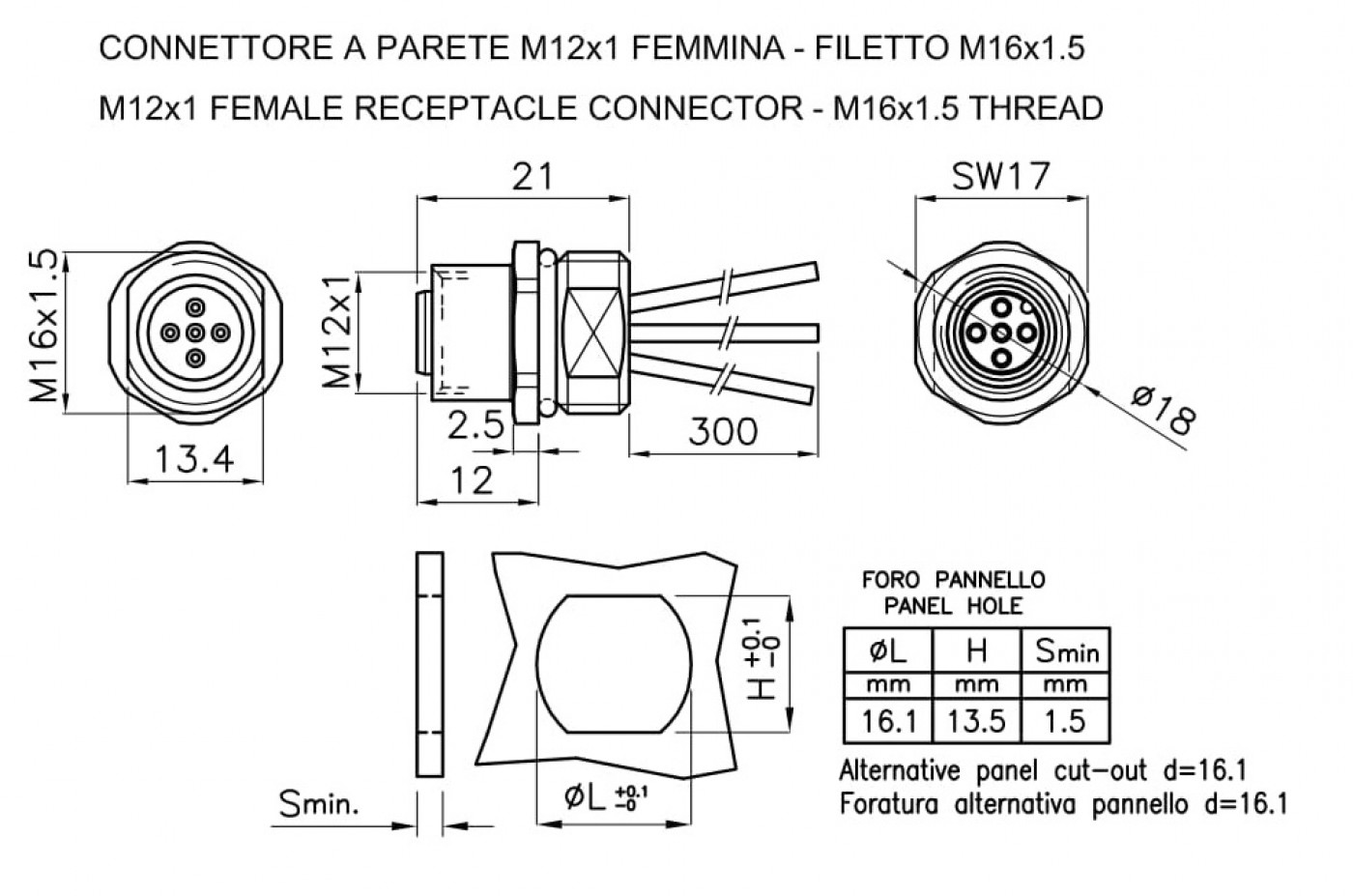

DEVICENET M12 Female panel connector 5 poles - front mounting M16x1.5
QB12F5-F1-B030
DEVICENET M12 Female panel connector 5 poles - front mounting M16x1.5
Download Step-File
Length
300mm
Code
46892-000
EAN code
Customrate
85444290
Series:
fieldbus Panel connectors
Code/Initials
QB
Reference norm
IEC 61076-2-101 / -109
Protection degree
IP65, IP67, IP68*
Pollution degree
3
Operating temperature
-30°C … +85°C
Contacts material
Gold-plated Brass
Contacts holder
PA plastic
Gasket
NBR (FKM on request)
External Gasket
NBR
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
1000 Cycles max
External housing material
Nickel-plated Brass
Poles:
5 poles - DeviceNet-CANopen
Number of poles
5
Max rating voltage
24V DC (18...30V)
Max rating current
4A
Coding
A code
