CRL3A2-500-363

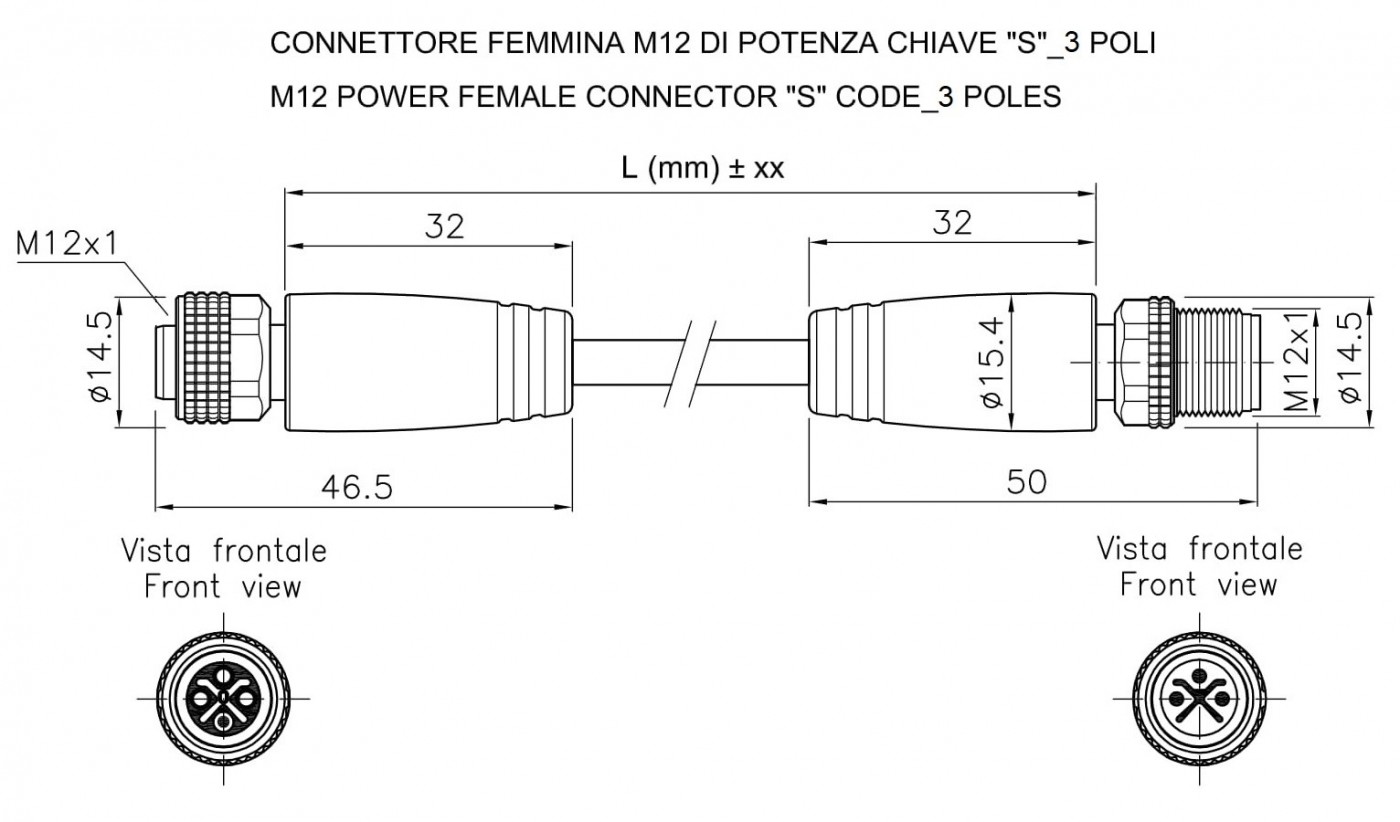

"S" code Power double ended connector M12 Female+M12 Male_3 poles_5mt
CRL3A2-500-363
"S" code Power double ended connector M12 Female+M12 Male_3 poles_5mt
Download Step-File
Length
5mt
Code
41971-003
EAN code
Customrate
85444290
Series:
'Power' connectors, M12 moulded series
Code/Initials
P12
Reference norm
IEC 61076-2-111
Protection degree
IP65, IP67, IP68*
Pollution degree
3
Operating temperature
-40°C … +85°C
No unscrewing ring-nut
Nickel-plated Brass
Contacts material
Gold-plated Brass
External insulation
TPU (PUR) plastic
Contacts holder
PA plastic
Gasket
NBR (FKM on request)
Insulation resistance
≥ 10⁸ Ω
Contact resistance
≤ 5mΩ
Mechanical operations
1000 Cycles max

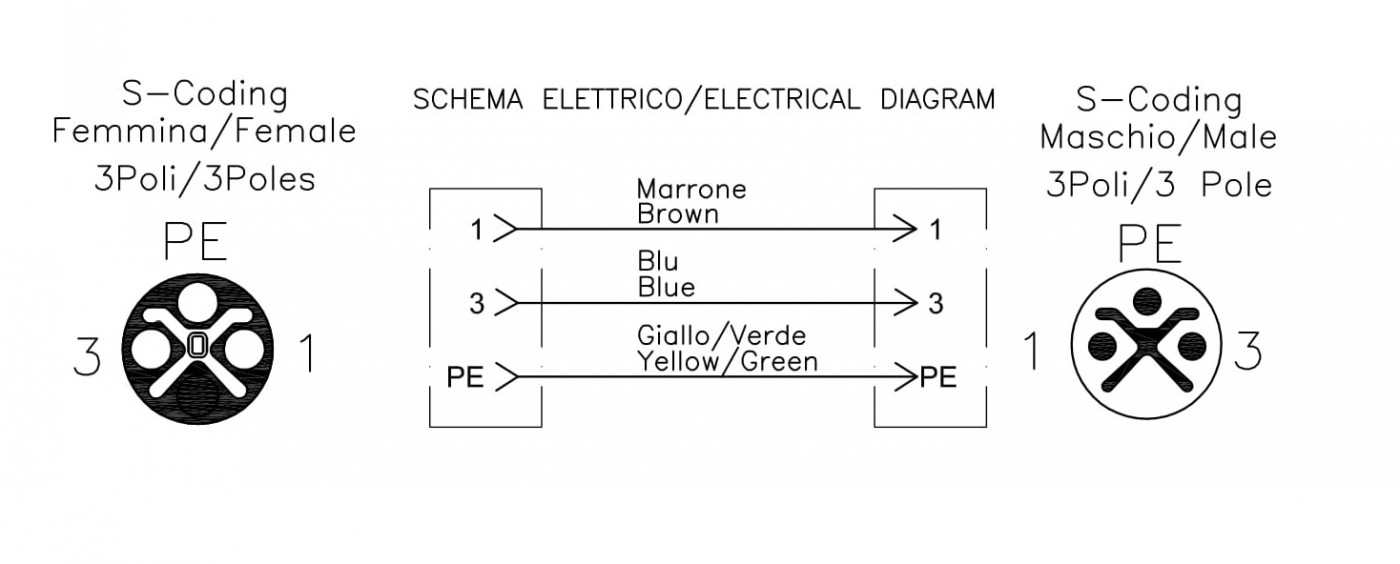

Poles:
3 poles - Powers Connectors 'S' code
Number of poles
3
Max rating voltage
450V
Max rating current
12A Max
Cables:
PUR 3 G 1,50 mm² 80° 1000V UL Style
Code/Initials
363
Sheat material
PUR
Sheat diameter
7,50 mm ± 0,20
Sheat color
Grey similar Ral 7001
Conductors section
3 G 1,5 mm² (AWG16)
Insulation material of conductors
PP
Structure of conductors
81 x 0,15 mm
Conductors color
brown, blue, yellow/green
Cable rating voltage
≤ 1000 V
Alogen free
si
Radius of static installation
5 x cordset diameter
Radius of free installation
10 x cordset diameter
Work temperature
-40°C … +80°C
Work temperature
-25°C … +80°C
Shielding
yes
